Engineered Power: 1 kW – 20 kW Fiber Laser Source

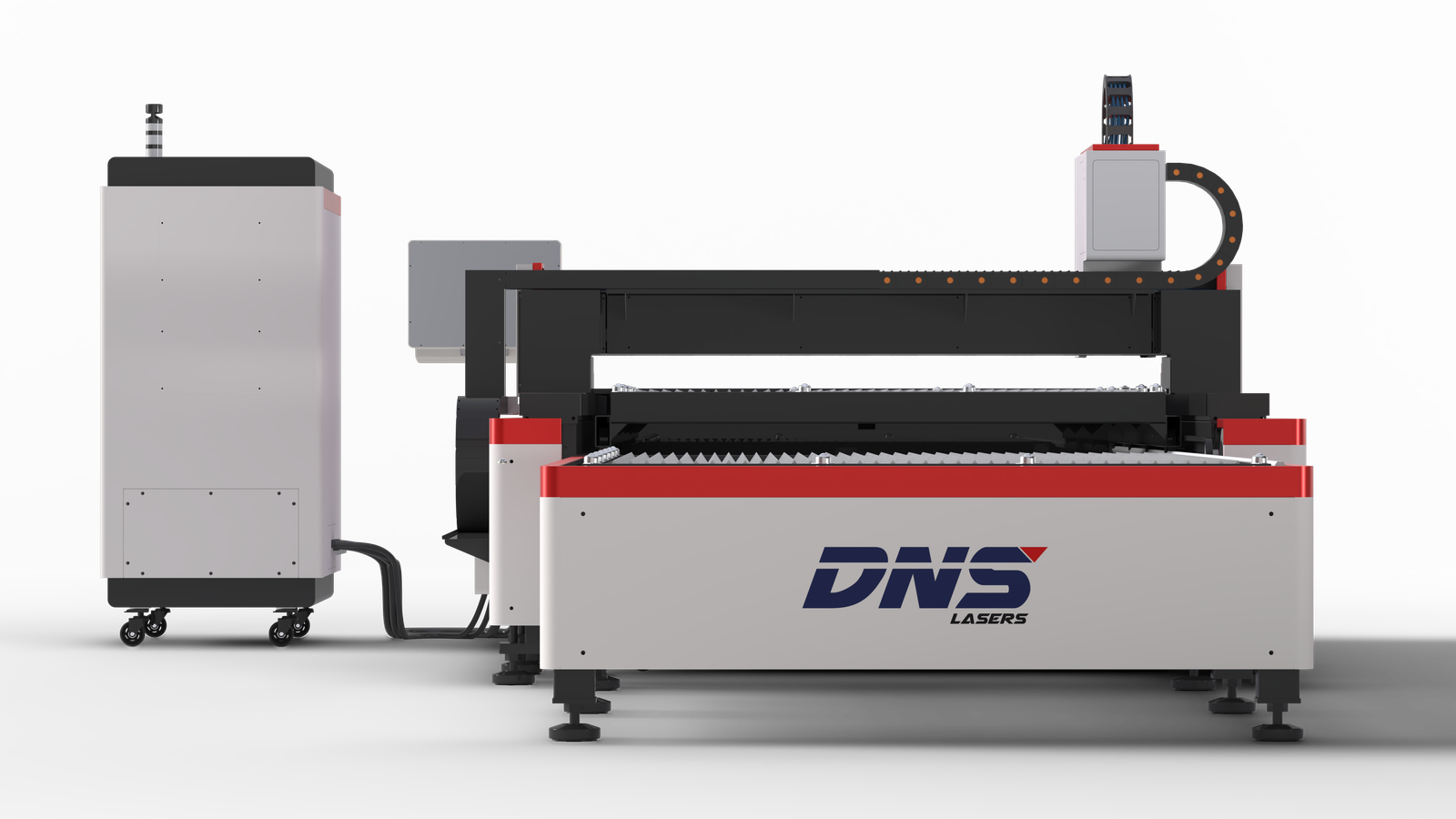

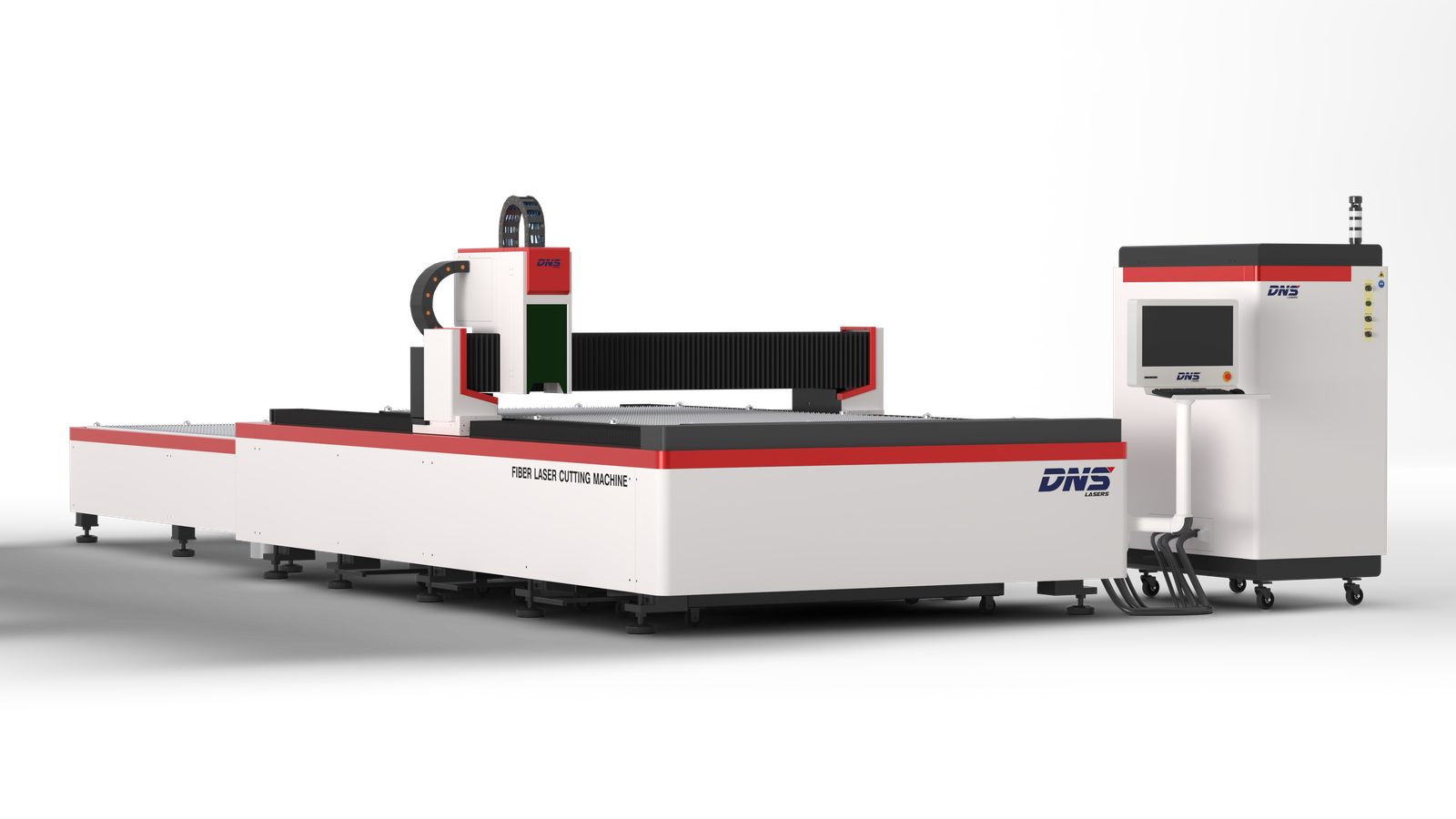

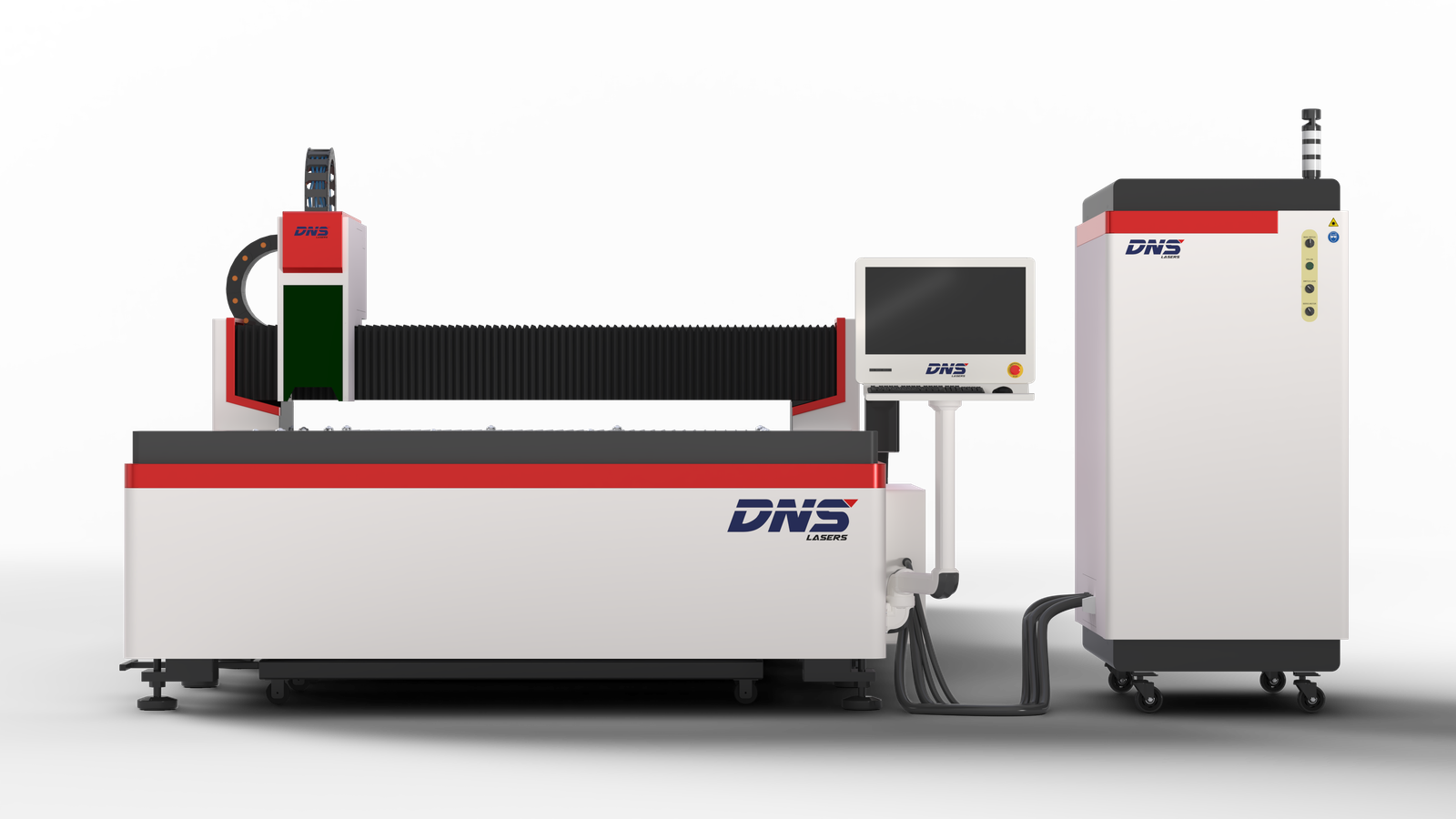

The Open Type CNC Fiber Laser Machine, available in power ranges from 1kW to 20kW, is designed to deliver high-speed, high-precision, and cost-effective sheet metal cutting.
The Open Type CNC Fiber Laser Machine, available in power ranges from 1kW to 20kW, is designed to deliver high-speed, high-precision, and cost-effective sheet metal cutting for a wide range of industrial applications. Its open-table design allows easy access from all sides, enabling quick loading and unloading of materials and making it ideal for continuous production environments.
With rapid movement speeds of up to 100 m/min, 1.2G acceleration, and cutting speeds of up to 30 meters per minute depending on material, the machine ensures fast and efficient processing. Built for high accuracy with cutting tolerances up to ±0.05 mm, it delivers clean edges and consistent quality across various metals such as mild steel, stainless steel, aluminium, and brass. The advanced EtherCAT-based control system guarantees smooth motion control and precise cutting performance, while the robust industrial structure is optimized for long-term reliability.
Powered by energy-efficient fiber laser technology, the Open Type CNC Fiber Laser Machine significantly reduces operating costs and maintenance requirements. It is an ideal solution for industries such as metal fabrication, signage manufacturing, HVAC, electrical panels, automotive components, and general engineering where speed, flexibility, and precision are essential.

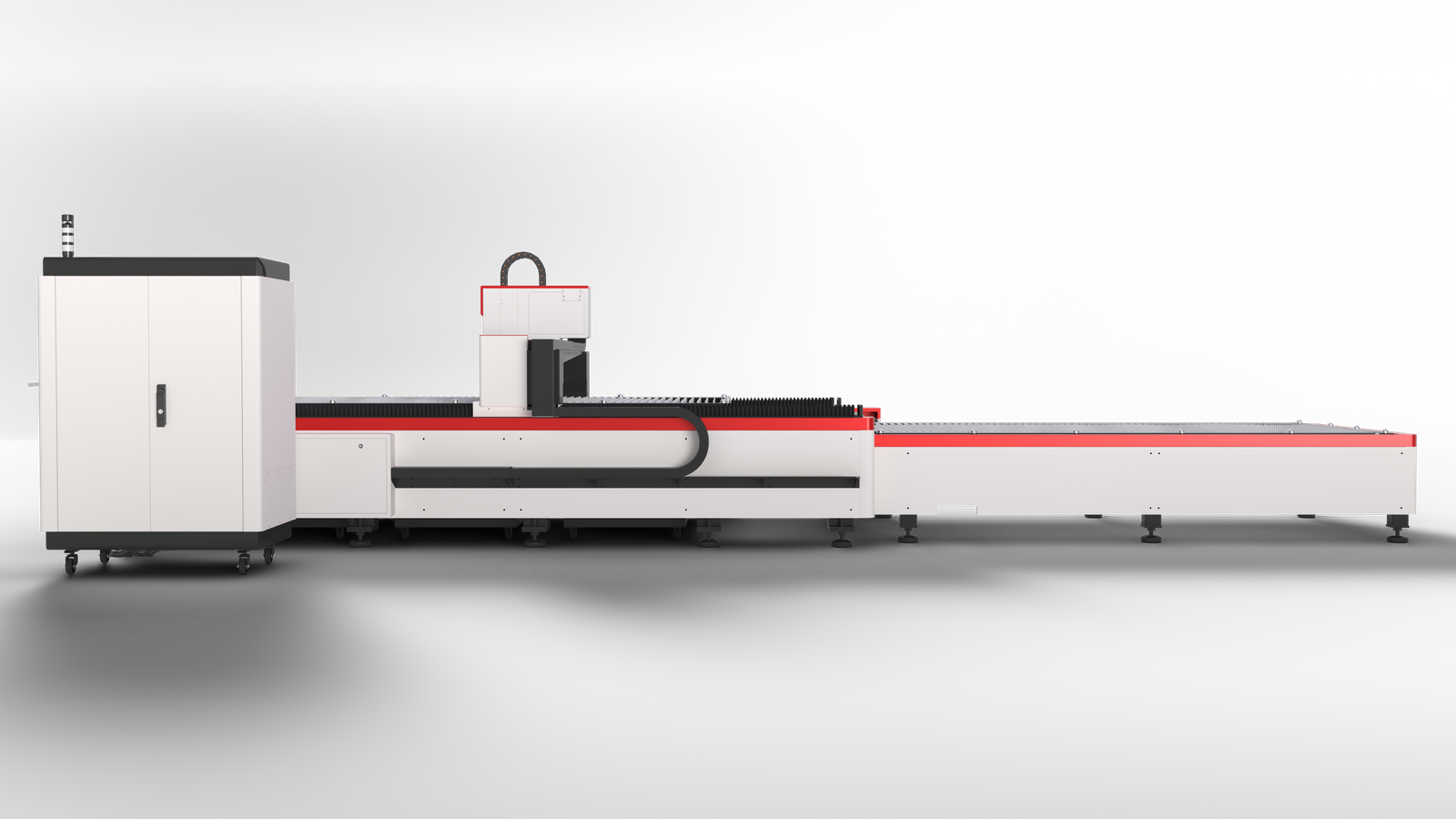

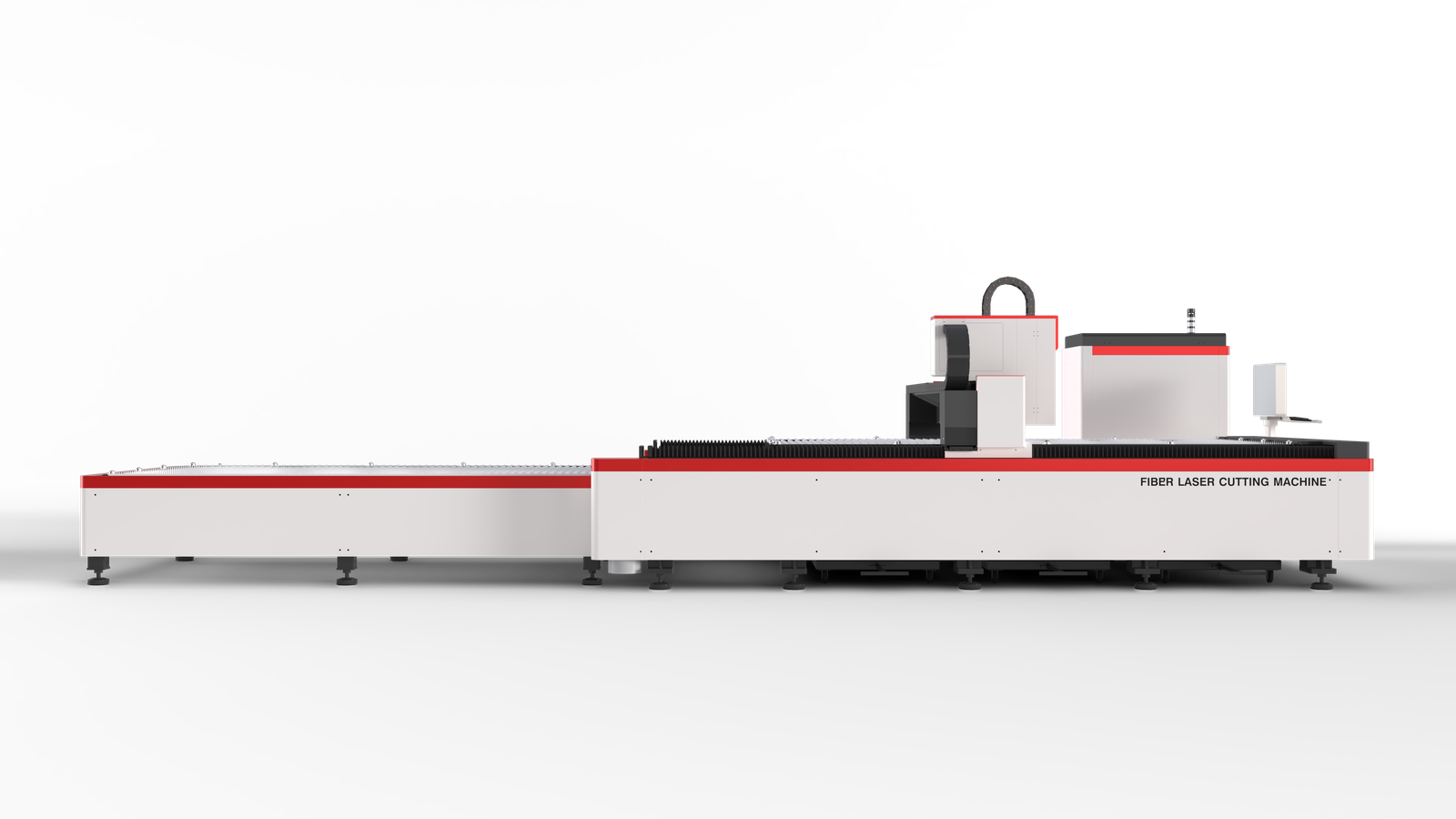

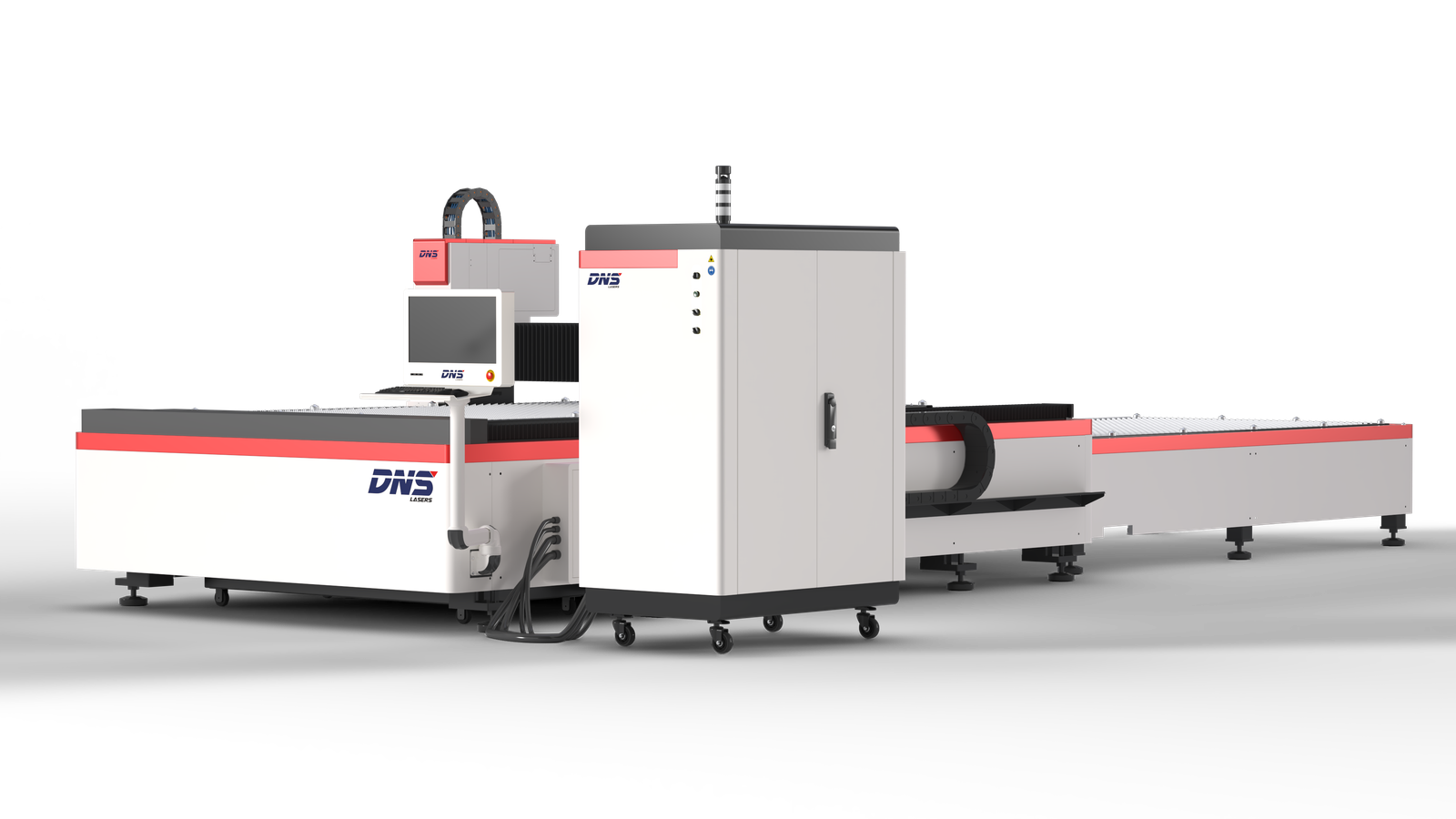

Double exchange pallet table for non-stop cutting and rapid turnaround times.
Fast automatic exchange table allows simultaneous cutting and unloading, virtually eliminating idle time.
Ultra-fast industrial bus ensures millisecond response and synchronized multi-axis servo positioning.
Engineered for high-yield sheet metal production with optimal acceleration and cornering dynamics.
Consistent precision cut across thin and thick sheet profiles with auto-focus laser head.
Stress-relieved rigid bed maintains structural integrity under heavy sheet metal workloads.
Dedicated dual-circuit cooling system guarantees optimal optical beam quality.
Compare specifications across Compact Series machine configurations.
| Specification | LC-3015D | LC-4020D | LC-6520D | LC-6525D |
|---|---|---|---|---|
| Laser Capacity | 1 kW – 3 kW | 1 kW – 6 kW | 1 kW – 12 kW | 1 kW – 12 kW |
| Outer Size (L × W × H) | 7900 × 2500 × 1900 mm | 9900 × 3200 × 1900 mm | 15000 × 3300 × 2200 mm | 15000 × 4100 × 2200 mm |
| Working Size (L × W) | 3000 × 1500 mm | 4000 × 2000 mm | 6500 × 2000 mm | 6500 × 2500 mm |
| Max Speed | 100 m/min | 100 m/min | 100 m/min | 100 m/min |
| Max Acceleration | 1.2G | 1.2G | 1.2G | 1.2G |
| Cutting Accuracy | ±0.05 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Control System | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC |
| Cooling System | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Machine Control Panel | External for industrial purpose | External for industrial purpose | External for industrial purpose | External for industrial purpose |
Clean cut metal thickness capability (in mm) calculated across various fiber laser power configurations.
| Laser Power | MS — Mild Steel (mm) | SS — Stainless Steel (mm) | Aluminium (mm) | Brass (mm) |
|---|---|---|---|---|
| 1.5 kW | 12 mm | 5 mm | 3 mm | 1 mm |
| 3 kW | 16 mm | 8 mm | 6 mm | 4 mm |
| 6 kW | 25 mm | 15 mm | 12 mm | 8 mm |
| 12 kW | 35 mm | 25 mm | 25 mm | 12 mm |
Engineered for diverse sheet metal manufacturing industries across India and global markets.
