1.5 kW – 20 kW
Engineered Power: 1.5 kW – 20 kW Fiber Laser Source

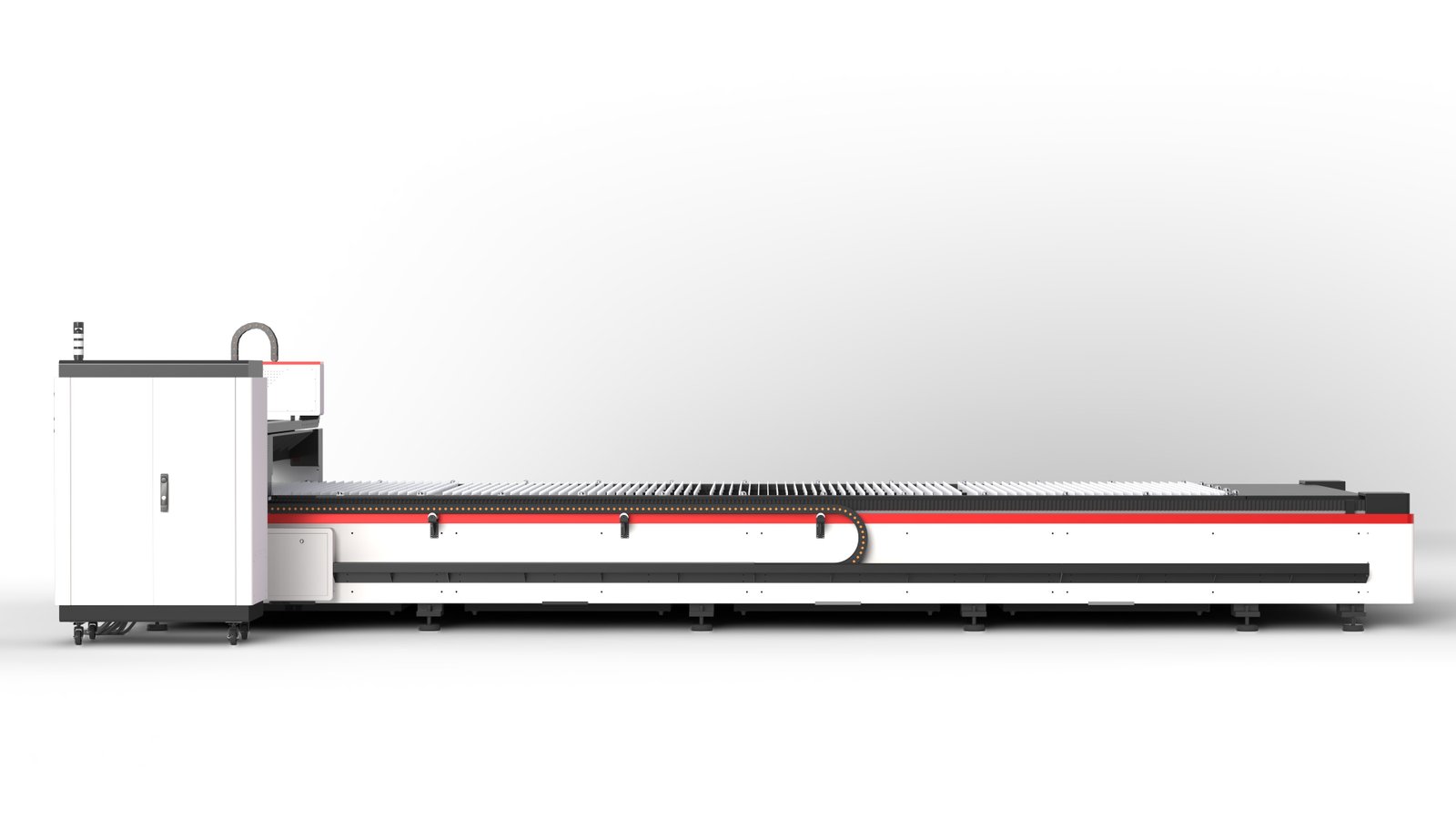

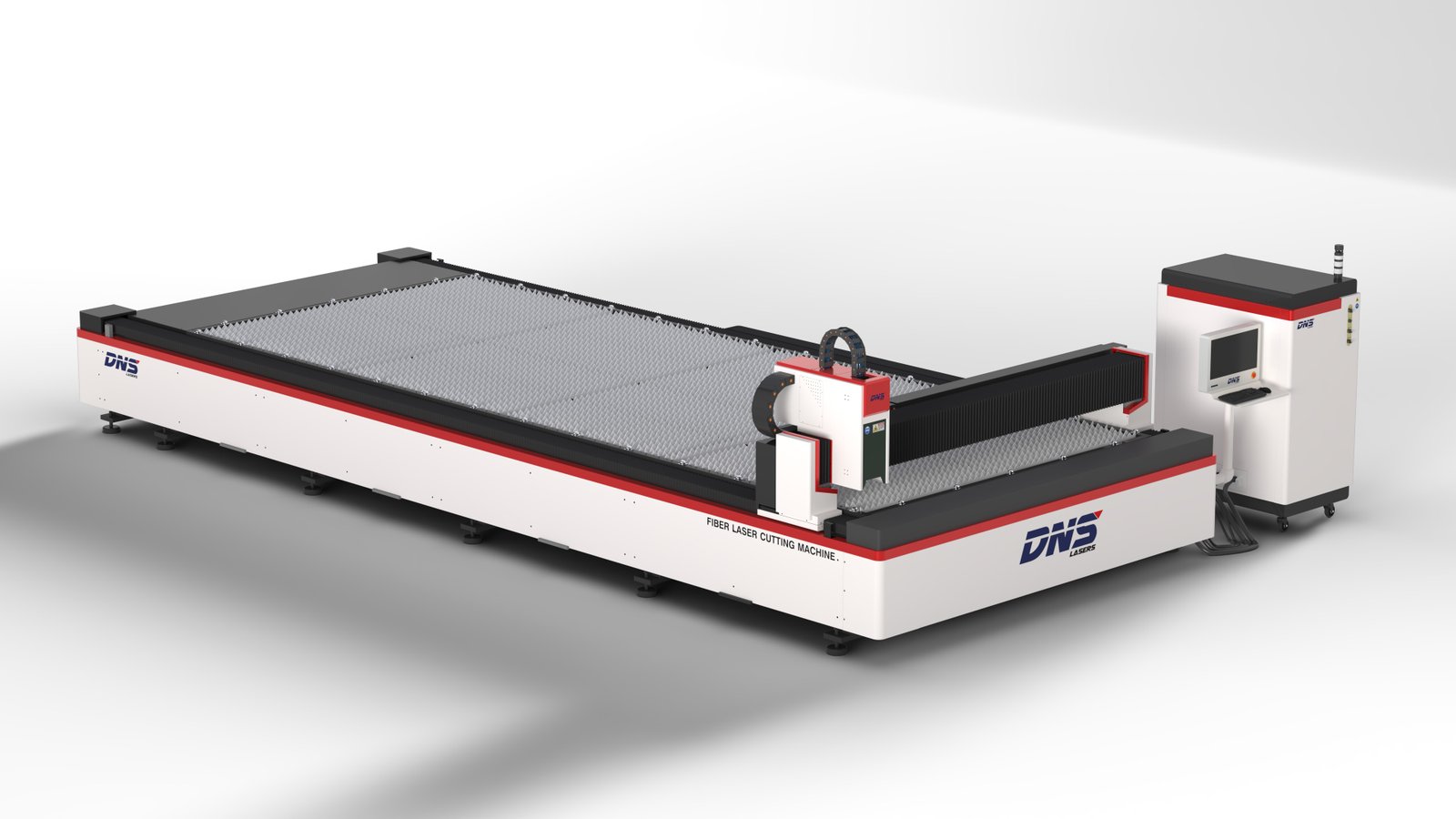

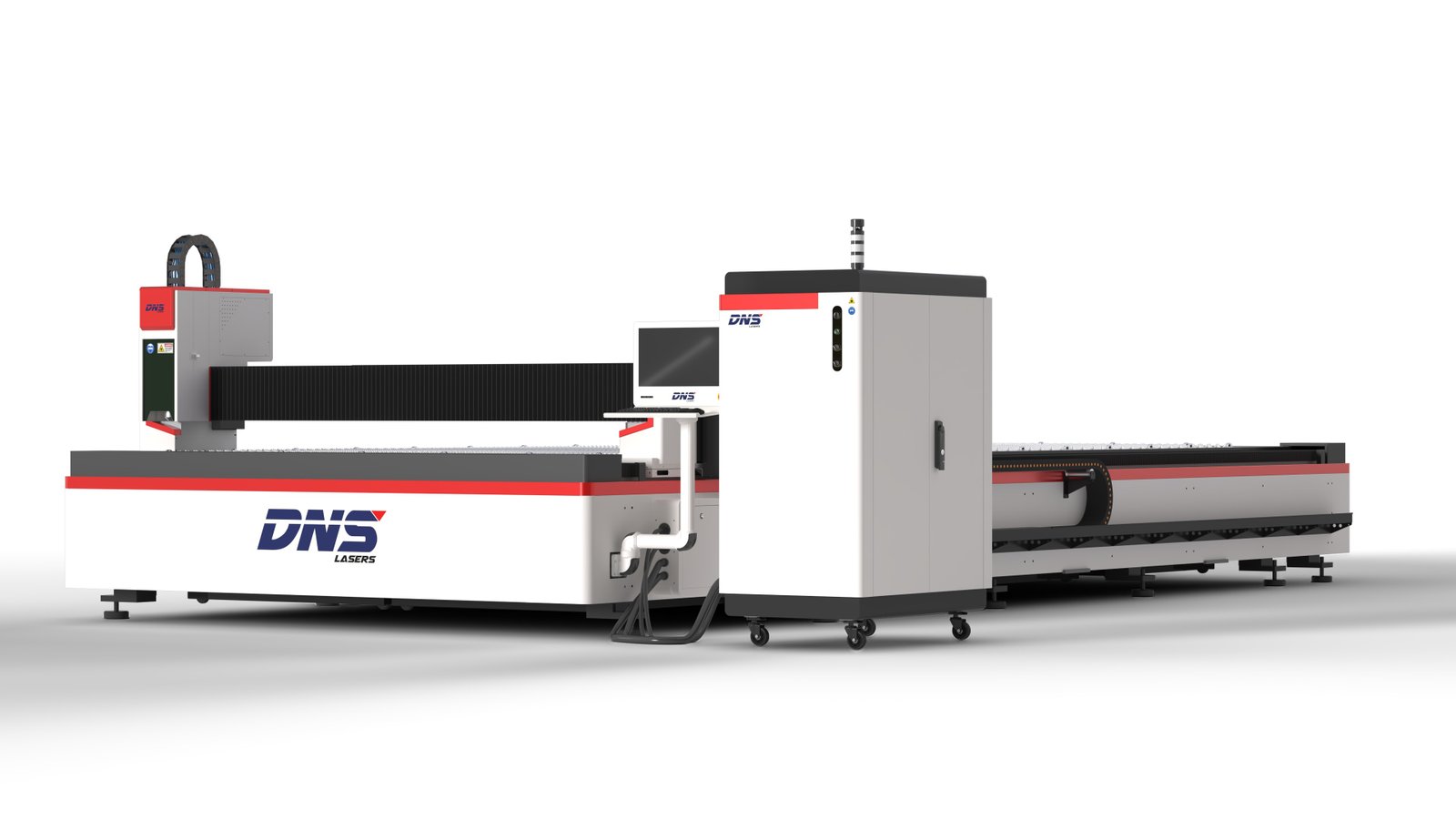

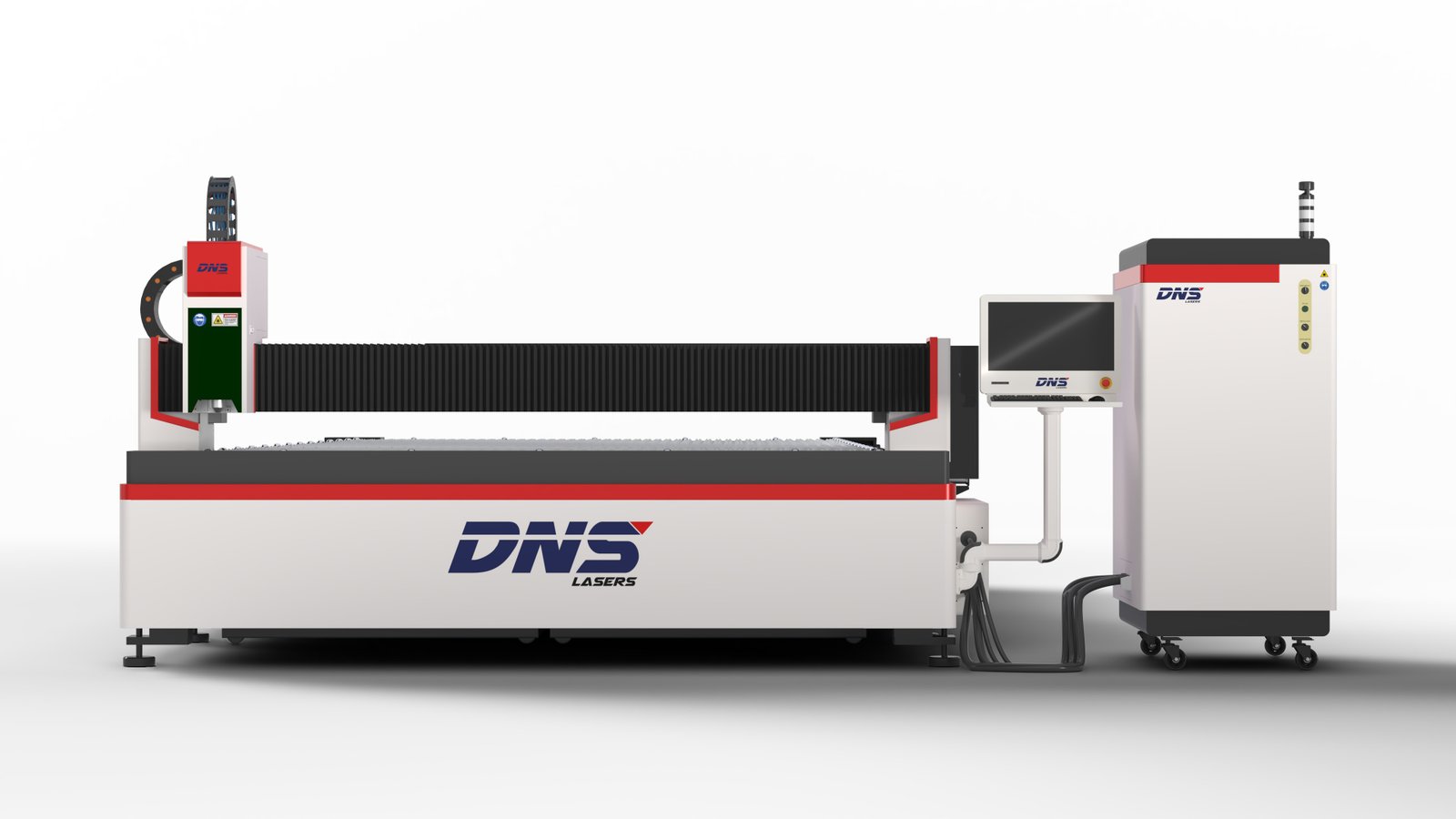

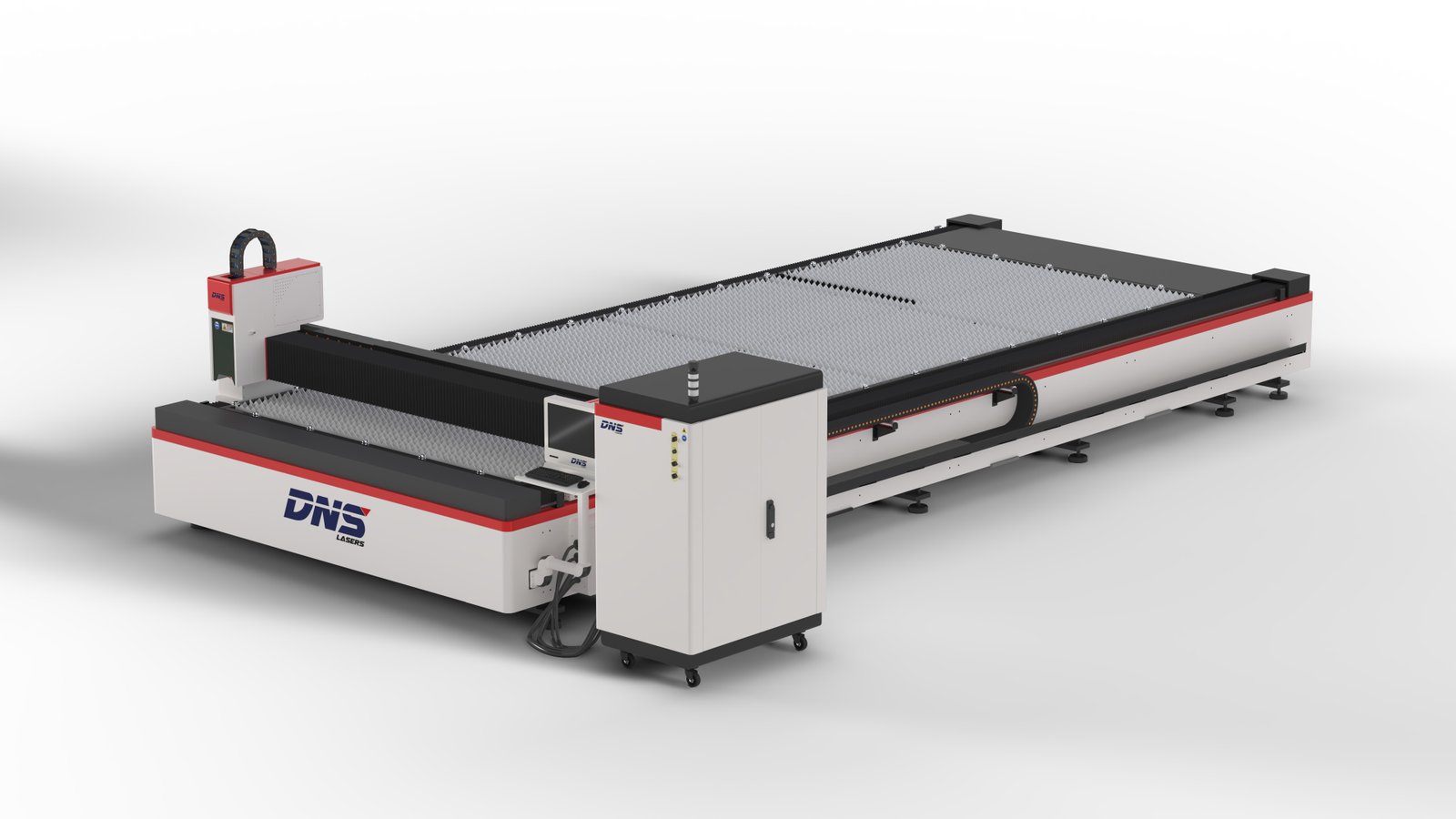

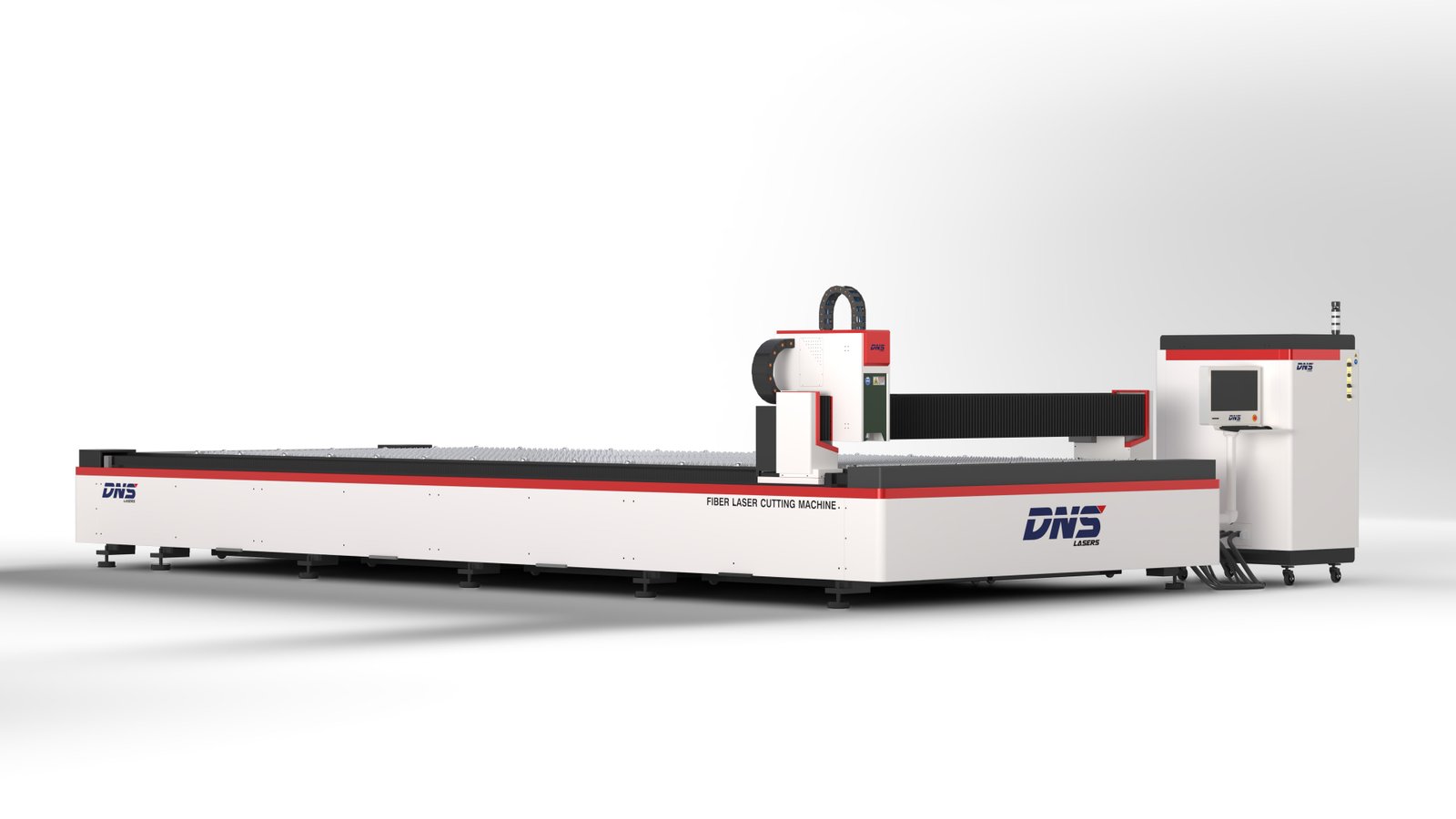

The Industrial CNC Fiber Laser Machine from DNS Lasers is designed for high-speed, high-precision, and heavy-duty sheet metal cutting in demanding industrial environments.
The Industrial CNC Fiber Laser Machine from DNS Lasers is designed for high-speed, high-precision, and heavy-duty sheet metal cutting in demanding industrial environments. Built with a robust open-table structure, it allows easy access for quick material loading and unloading, making it perfect for continuous production and high-throughput operations.
Equipped with powerful fiber laser sources ranging from 1.5 kW to 20 kW and large working areas up to 6500 x 2500 mm, this machine delivers outstanding cutting performance across a wide range of metal thicknesses. With rapid movement speeds of up to 100 m/min, 1.2G acceleration, and cutting accuracy of ±0.05 mm, it ensures clean cuts, sharp edges, and consistent output quality. The advanced EtherCAT-based CNC control system offers smooth motion control, fast response, and superior cutting precision, while the industrial-grade cooling system ensures stable long-term operation.
The Industrial CNC Fiber Laser Machine is ideal for metal fabrication units, heavy engineering, signage manufacturing, HVAC component production, agricultural machinery, electrical panel fabrication, and general industrial laser cutting applications where speed, accuracy, and reliability are essential.
High-power open-table design built for continuous production and maximum throughput.
Real-time high-speed bus motion control for high dynamic accuracy and synchronized laser pulse piercing.
Ultra-powerful laser source options for thick carbon steel, stainless steel, and non-ferrous reflective metals.
Rapid traverse speed paired with high acceleration gantry system to maximize manufacturing productivity.
Precise helical rack-and-pinion transmission ensuring micrometer-level repeatability on all cuts.
Heavy-duty industrial chiller maintains optical stability and long laser diode lifespan.
Unrestricted access from front and sides for fast overhead crane and forklift sheet loading.
Compare specifications across Compact Series machine configurations.
| Specification | LC-3015S | LC-4020S | LC-6520S | LC-6525S |
|---|---|---|---|---|
| Laser Capacity | 1.5kW - 6kW | 1.5kW - 6kW | 1.5kW - 20kW | 1.5kW - 20kW |
| Outer Size (L × W × H) | 4500 × 2500 × 1900 mm | 5500 × 3000 × 1900 mm | 8100 × 3000 × 2200 mm | 8100 × 3500 × 2200 mm |
| Working Size (L × W) | 3000 × 1500 mm | 4000 × 2000 mm | 6500 × 2000 mm | 6500 × 2500 mm |
| Max Speed | 100 m/min | 100 m/min | 100 m/min | 100 m/min |
| Max Acceleration | 1.2G | 1.2G | 1.2G | 1.2G |
| Cutting Accuracy | ±0.05 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Control System | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC |
| Cooling System | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Machine Control Panel | External for industrial purpose | External for industrial purpose | External for industrial purpose | External for industrial purpose |
Clean cut metal thickness capability (in mm) calculated across various fiber laser power configurations.
| Laser Power | MS — Mild Steel (mm) | SS — Stainless Steel (mm) | Aluminium (mm) | Brass (mm) |
|---|---|---|---|---|
| 1.5 kW | 12 mm | 5 mm | 3 mm | 1 mm |
| 3 kW | 16 mm | 8 mm | 6 mm | 4 mm |
| 6 kW | 25 mm | 15 mm | 12 mm | 8 mm |
| 12 kW | 35 mm | 25 mm | 25 mm | 12 mm |
Engineered for diverse sheet metal manufacturing industries across India and global markets.
