1.5 kW – 12 kW
Engineered Power: 1.5 kW – 12 kW Fiber Laser Source

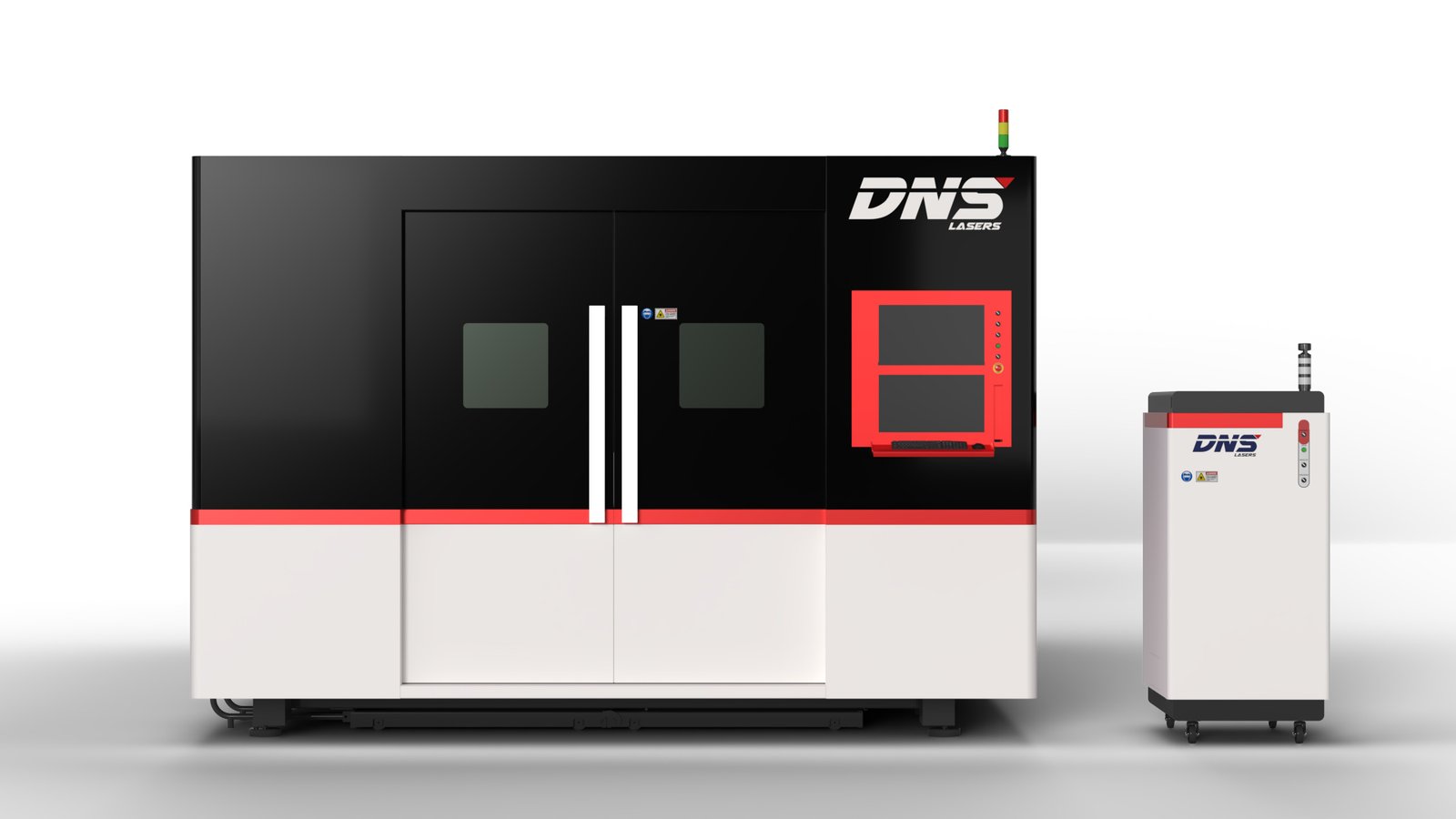

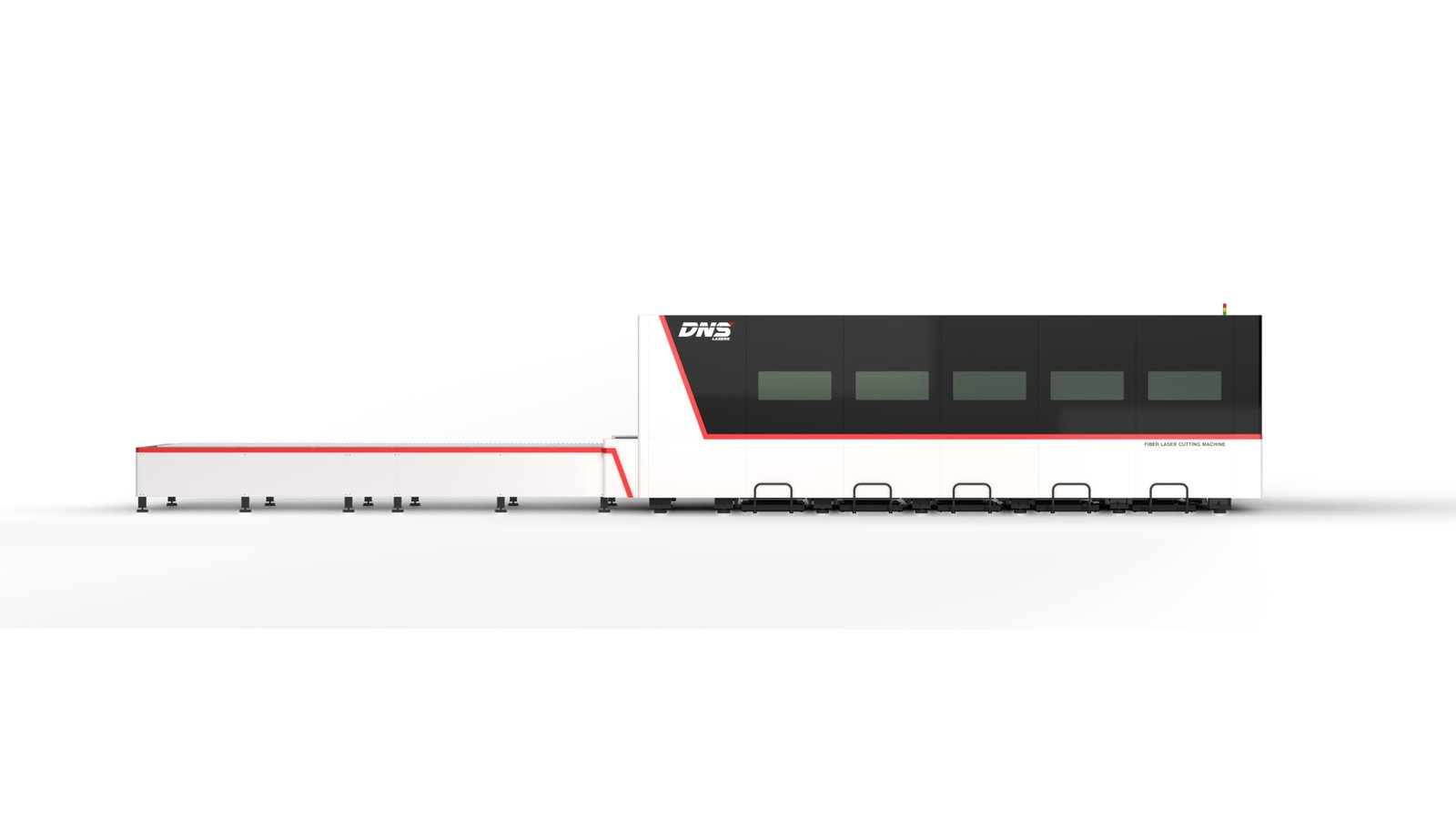

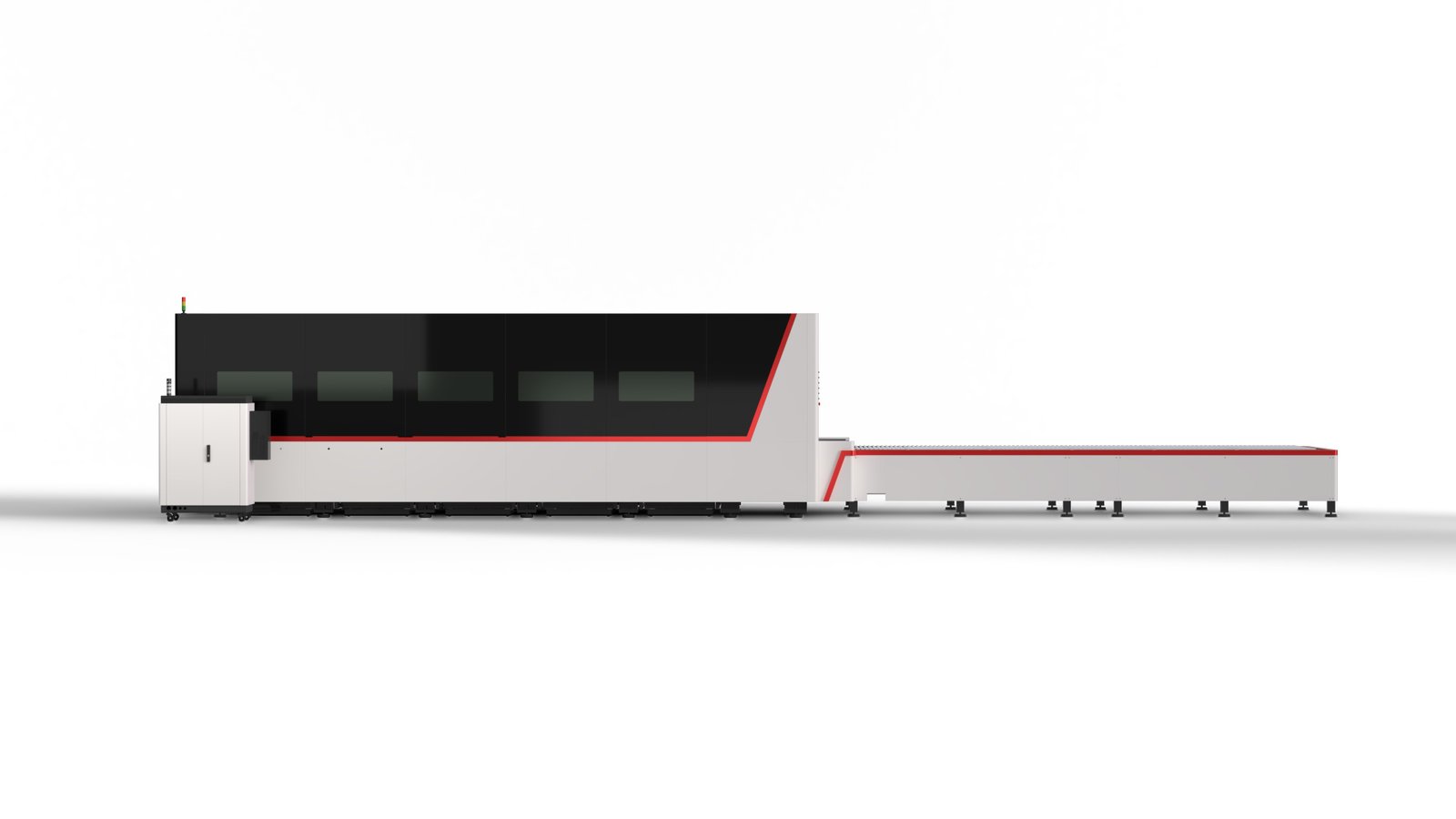

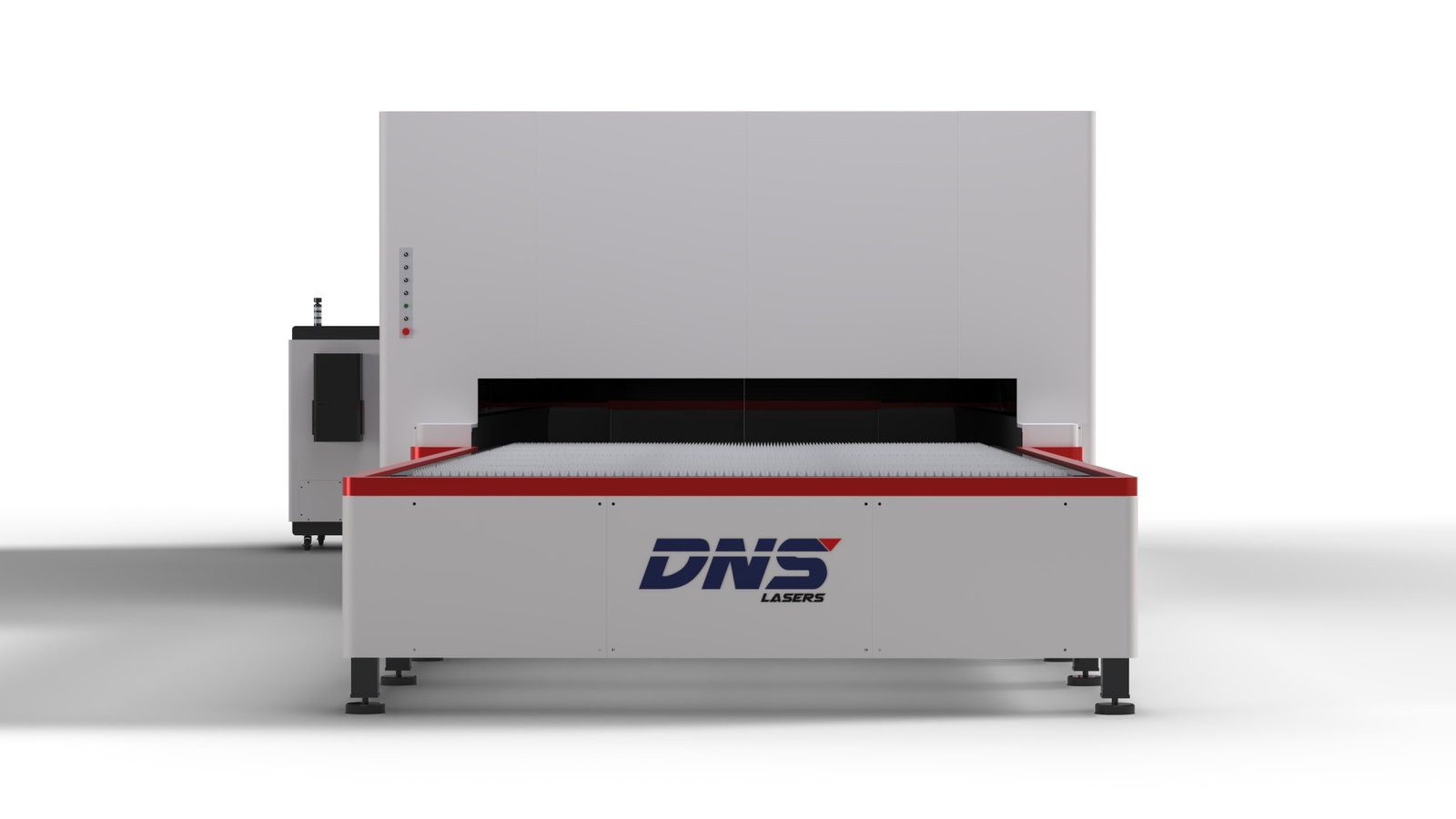

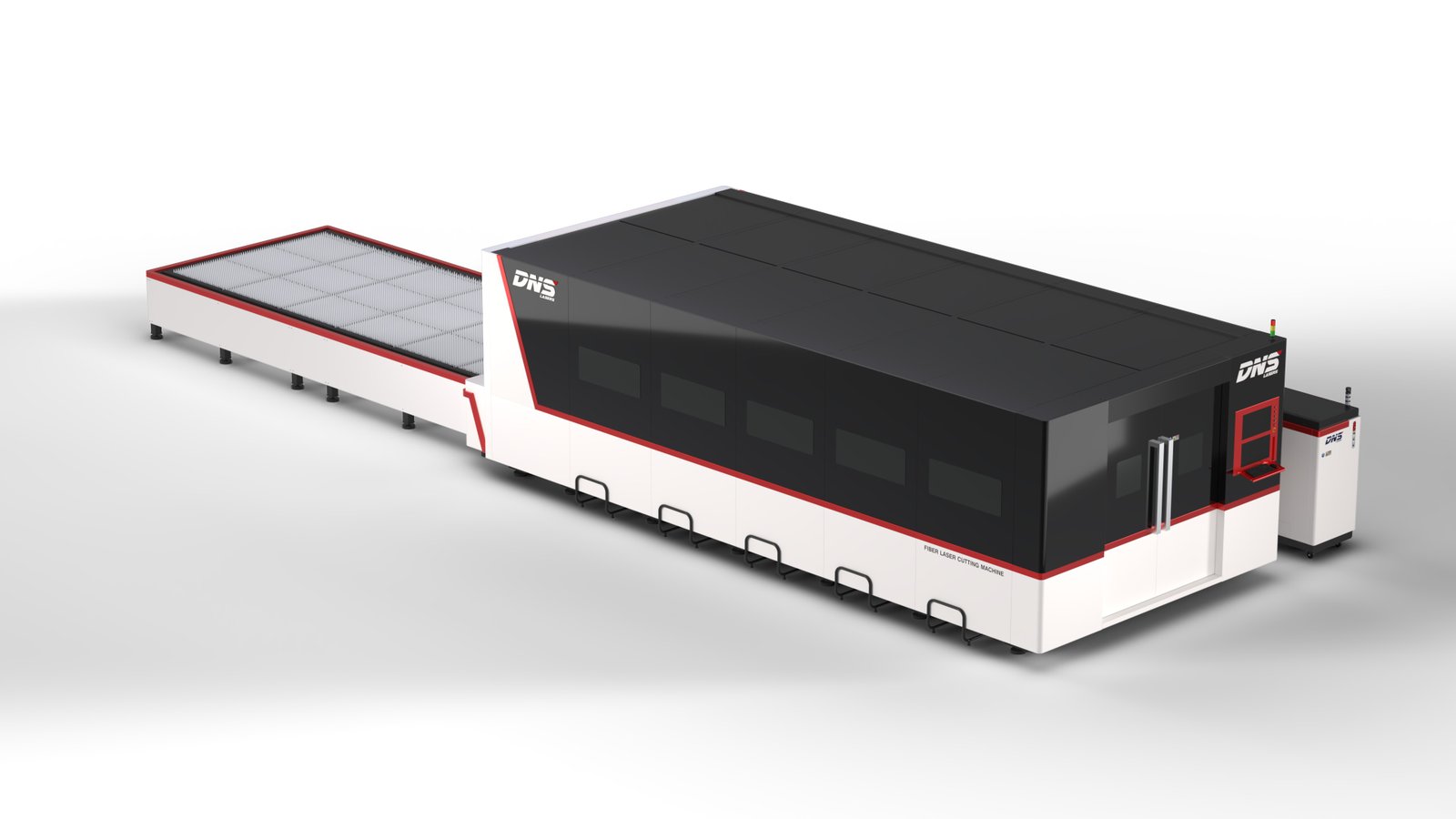

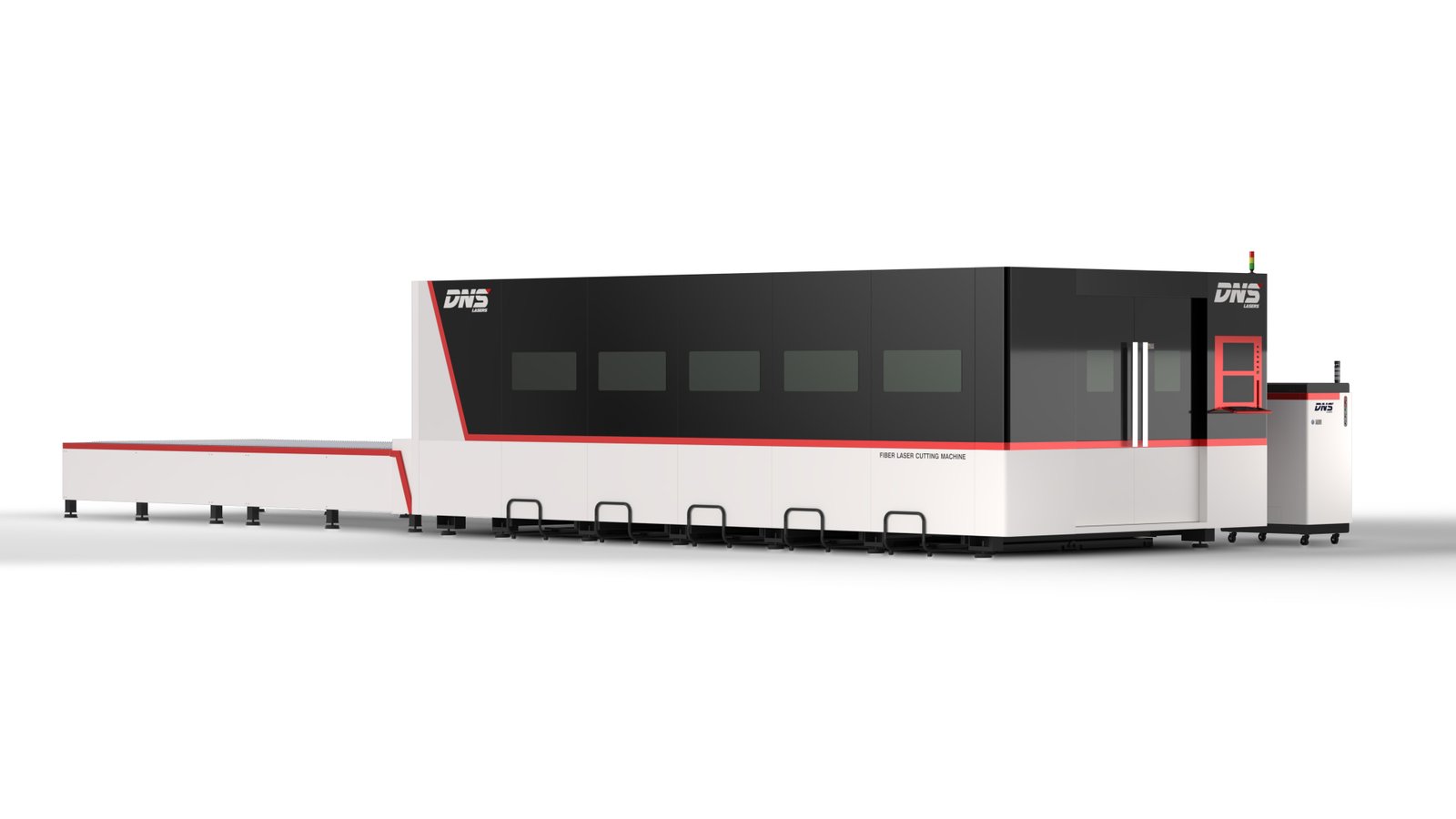

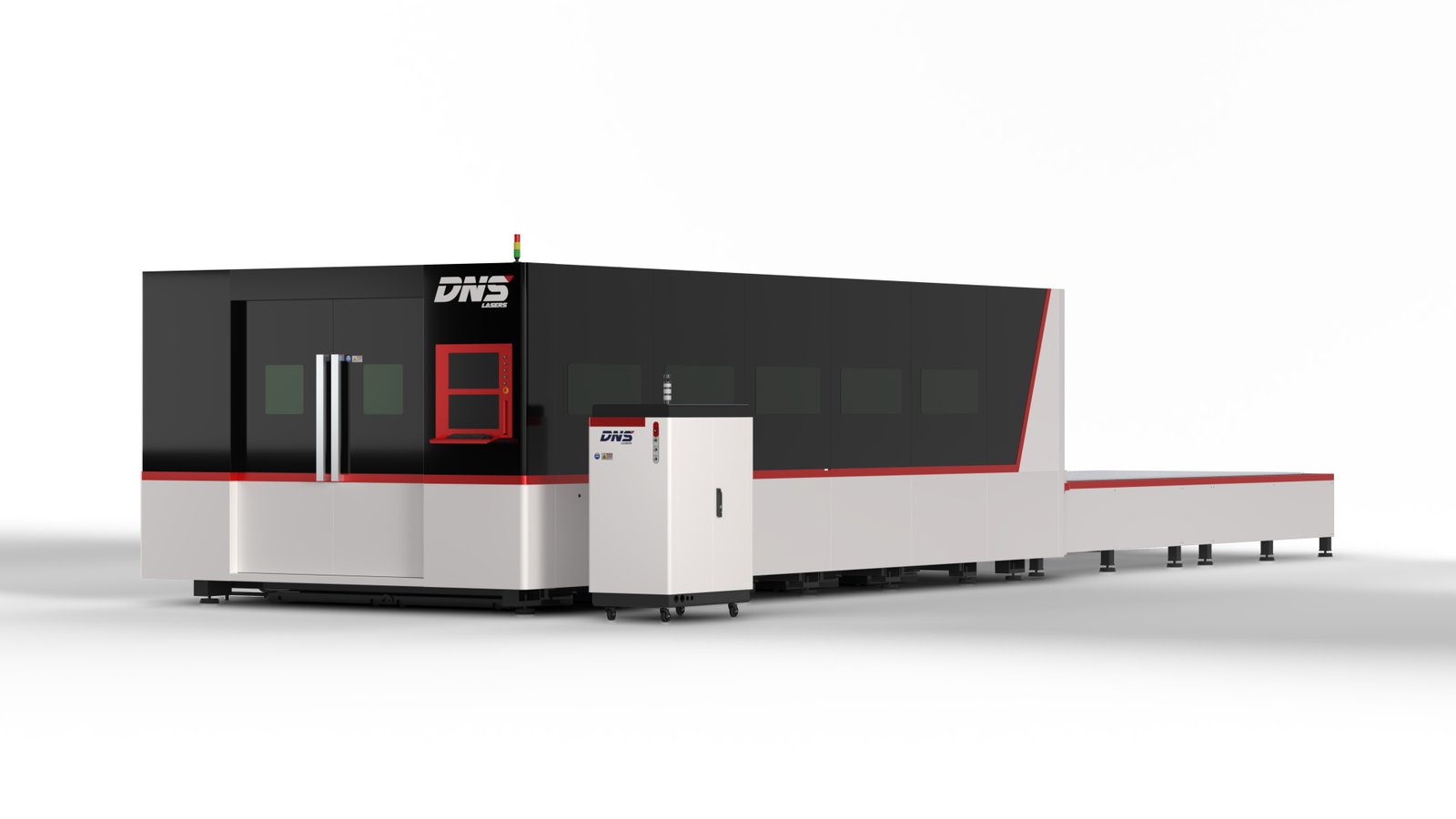

The Enclose Type CNC Fiber Laser Machine offers a safe, high-performance solution for industrial metal cutting, available in multiple power ratings and working sizes.
The Enclose Type CNC Fiber Laser Machine offers a safe, high-performance solution for industrial metal cutting, available in multiple power ratings and working sizes. Designed with a fully protective enclosure, it minimizes laser leakage, improves fume extraction, and creates a controlled work environment making it ideal for indoor and safety-conscious facilities.
These machines deliver exceptional speed (max. 150 m/min) and dynamic motion (up to 2G acceleration), while maintaining cutting accuracy to ±0.05 mm. Powered by efficient fiber-laser sources and an EtherCAT-based CNC control system, they provide energy-efficient operation, real-time motion control, and consistent repeatability for both custom and high-volume production.
With robust water cooling and industrial-grade external control panels, the enclosed models are low-maintenance and well-suited for automotive components, sheet metal fabrication, electrical enclosures, HVAC ductwork, signage, and other precision manufacturing needs.
Full protective cover, high-speed gantry dynamics up to 150 m/min and 2G acceleration.
Certified laser radiation protection glass with interlocking doors protects plant operators 100%.
Segmented negative pressure exhaust effectively clears dust, sparks, and toxic fumes from the cutting chamber.
Ultra-dynamic gantry drive achieves maximum cycle speed and rapid pierces on medium to thick sheets.
Real-time synchronization for precision trajectory control, corner power ramping, and lead-in management.
High-grade linear guide rails and ground racks provide tight tolerance cutting.
High-capacity dual refrigeration circuit ensures constant laser beam output during heavy duty runs.
Compare specifications across Compact Series machine configurations.
| Specification | LC-3015S | LC-4020S | LC-6520S | LC-6525S |
|---|---|---|---|---|
| Laser Capacity | 1.5kW - 6kW | 1.5kW - 12kW | 1kW - 12kW | 1kW - 12kW |
| Outer Size (L × W × H) | 7900 × 2500 × 1900 mm | 9900 × 3200 × 1900 mm | 16000 × 3300 × 2200 mm | 16000 × 4100 × 2200 mm |
| Working Size (L × W) | 3000 × 1500 mm | 4000 × 2000 mm | 6500 × 2000 mm | 6500 × 2500 mm |
| Max Speed | 120 m/min | 120 m/min | 150 m/min | 150 m/min |
| Max Acceleration | 1.5G | 1.5G | 2G | 2G |
| Cutting Accuracy | ±0.05 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Control System | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC |
| Cooling System | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Machine Control Panel | External for industrial purpose | External for industrial purpose | External for industrial purpose | External for industrial purpose |
Clean cut metal thickness capability (in mm) calculated across various fiber laser power configurations.
| Laser Power | MS — Mild Steel (mm) | SS — Stainless Steel (mm) | Aluminium (mm) | Brass (mm) |
|---|---|---|---|---|
| 1.5 kW | 12 mm | 5 mm | 3 mm | 1 mm |
| 3 kW | 16 mm | 8 mm | 6 mm | 4 mm |
| 6 kW | 25 mm | 15 mm | 12 mm | 8 mm |
| 12 kW | 35 mm | 25 mm | 25 mm | 12 mm |
Engineered for diverse sheet metal manufacturing industries across India and global markets.
