Engineered Power: 3 kW – 12 kW Fiber Laser Source

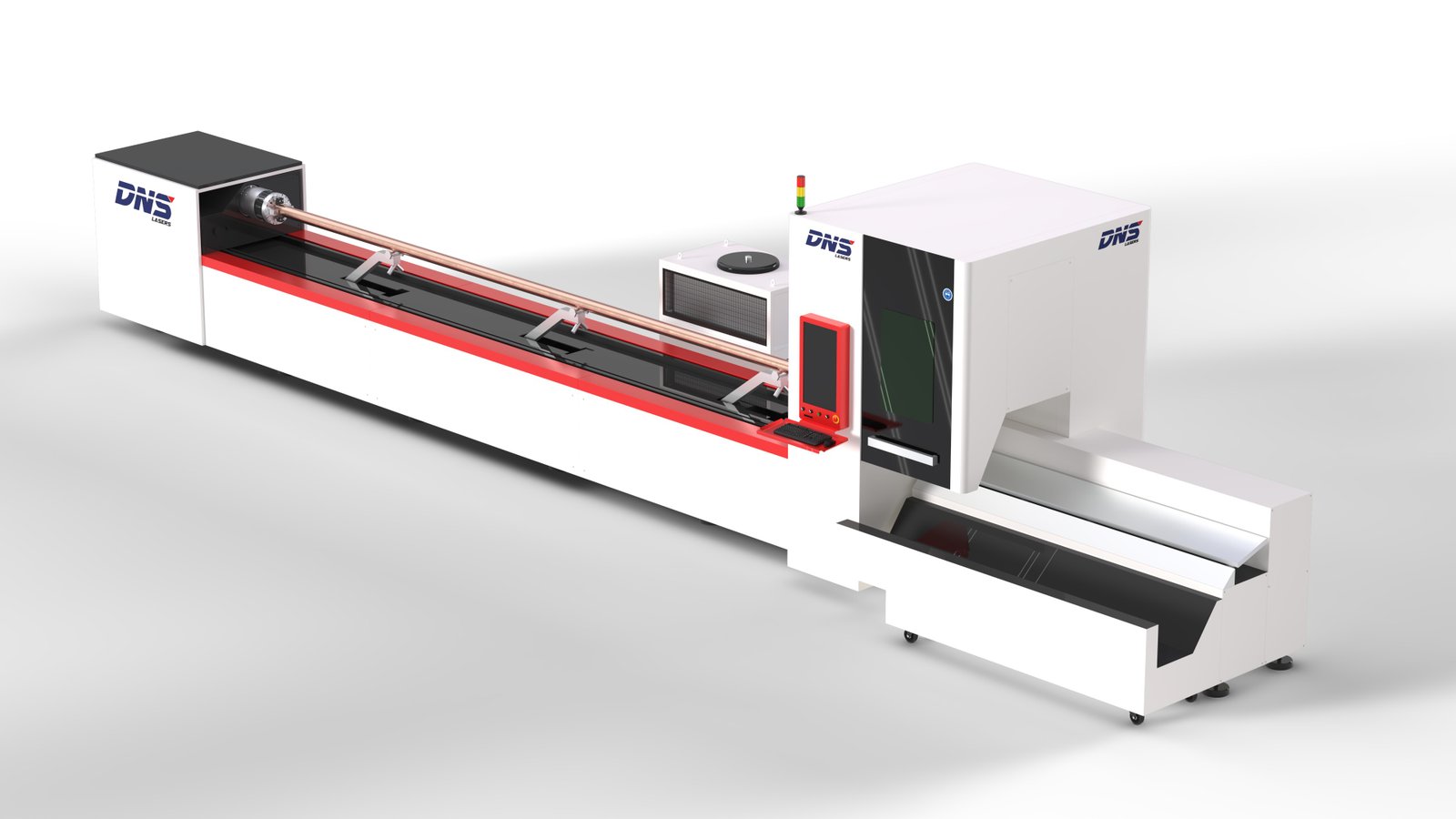

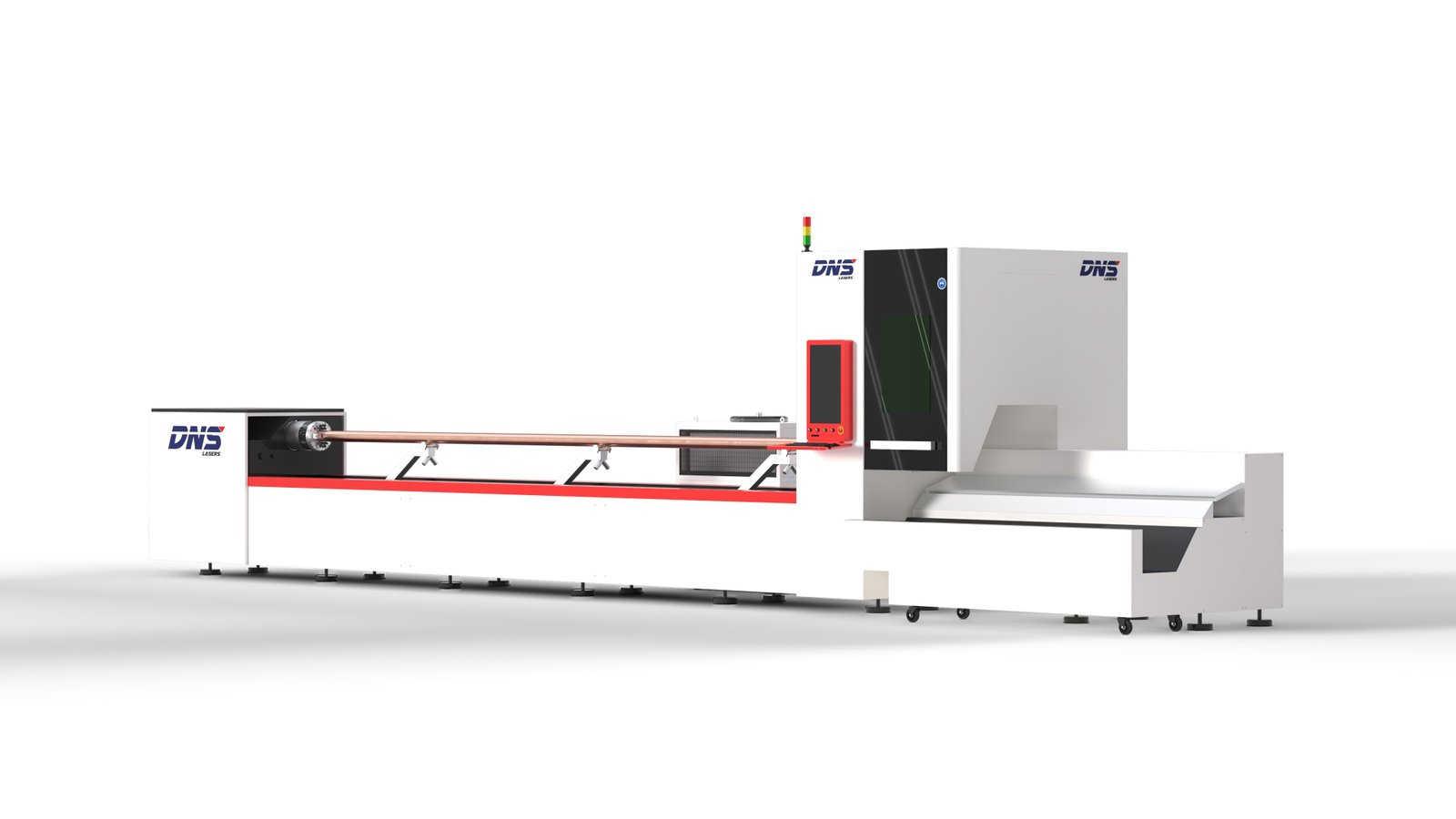

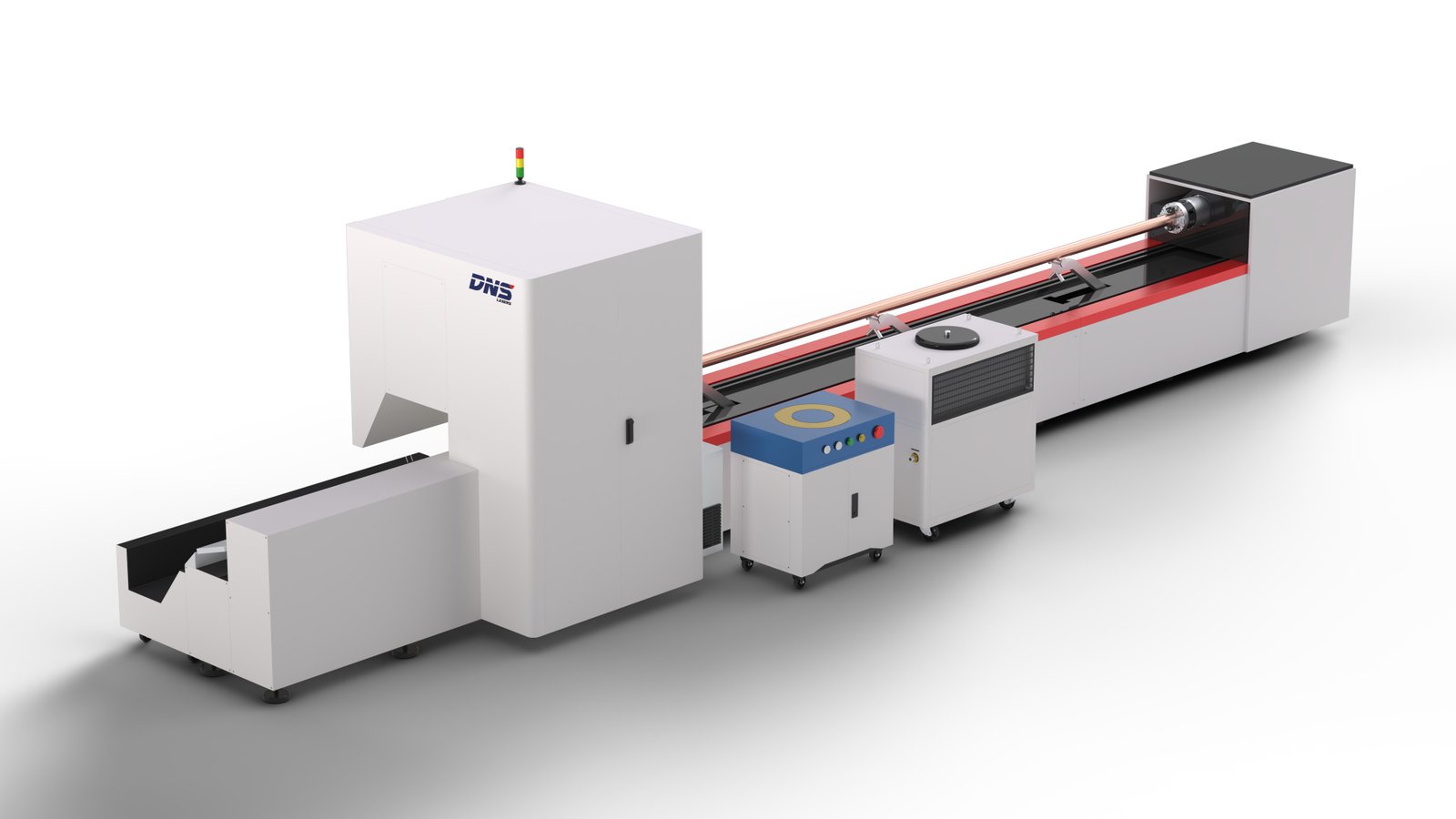

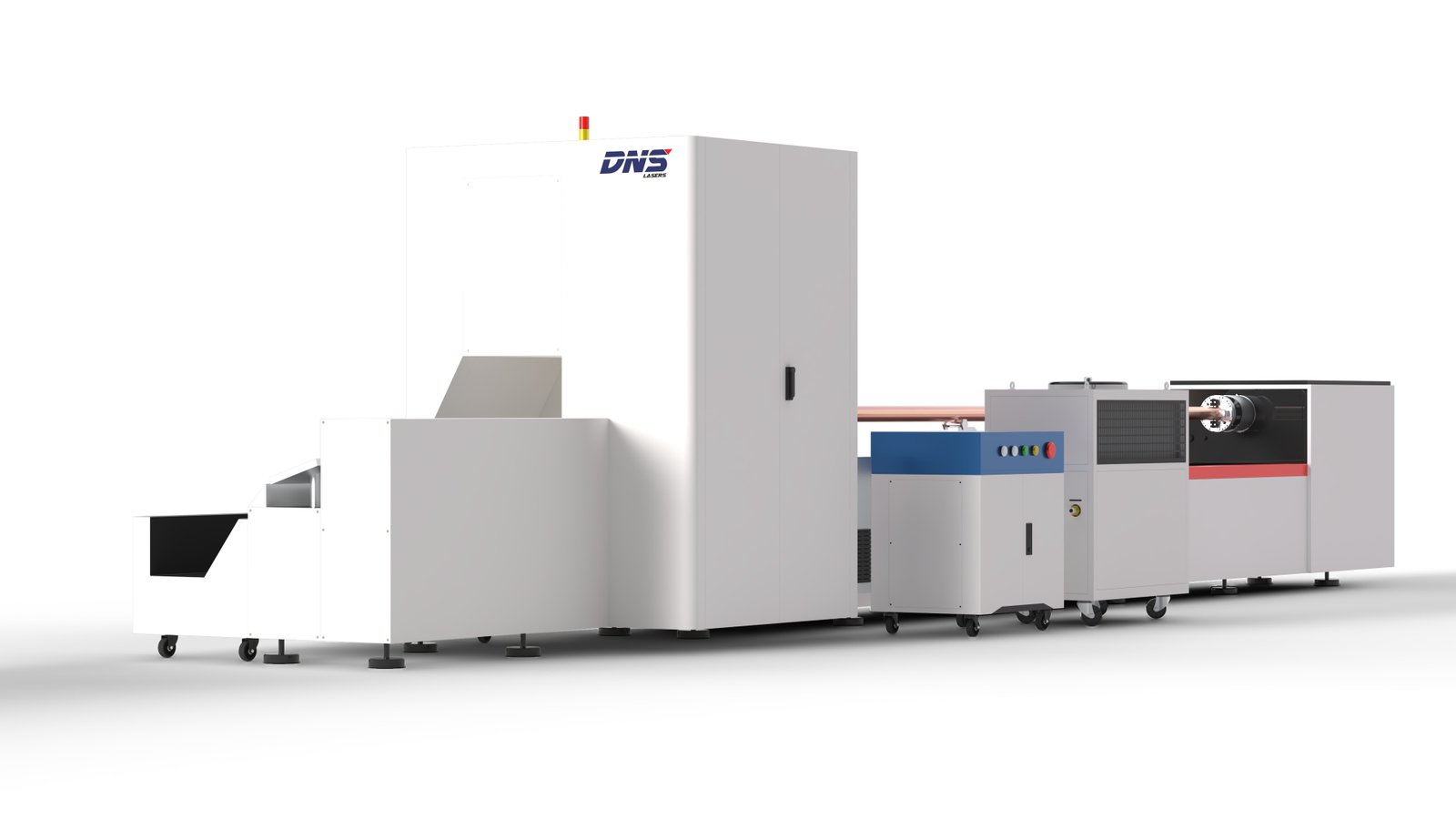

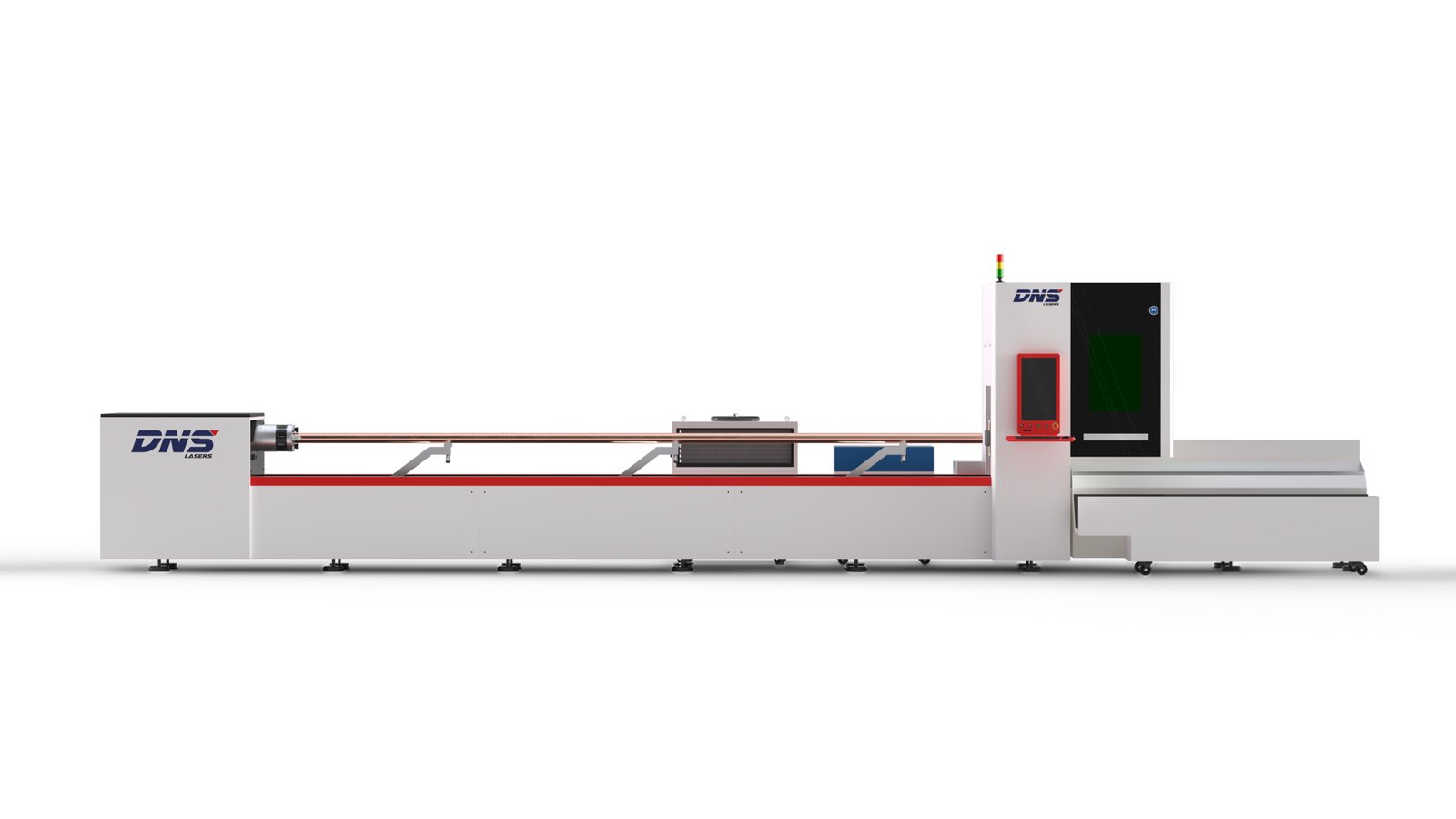

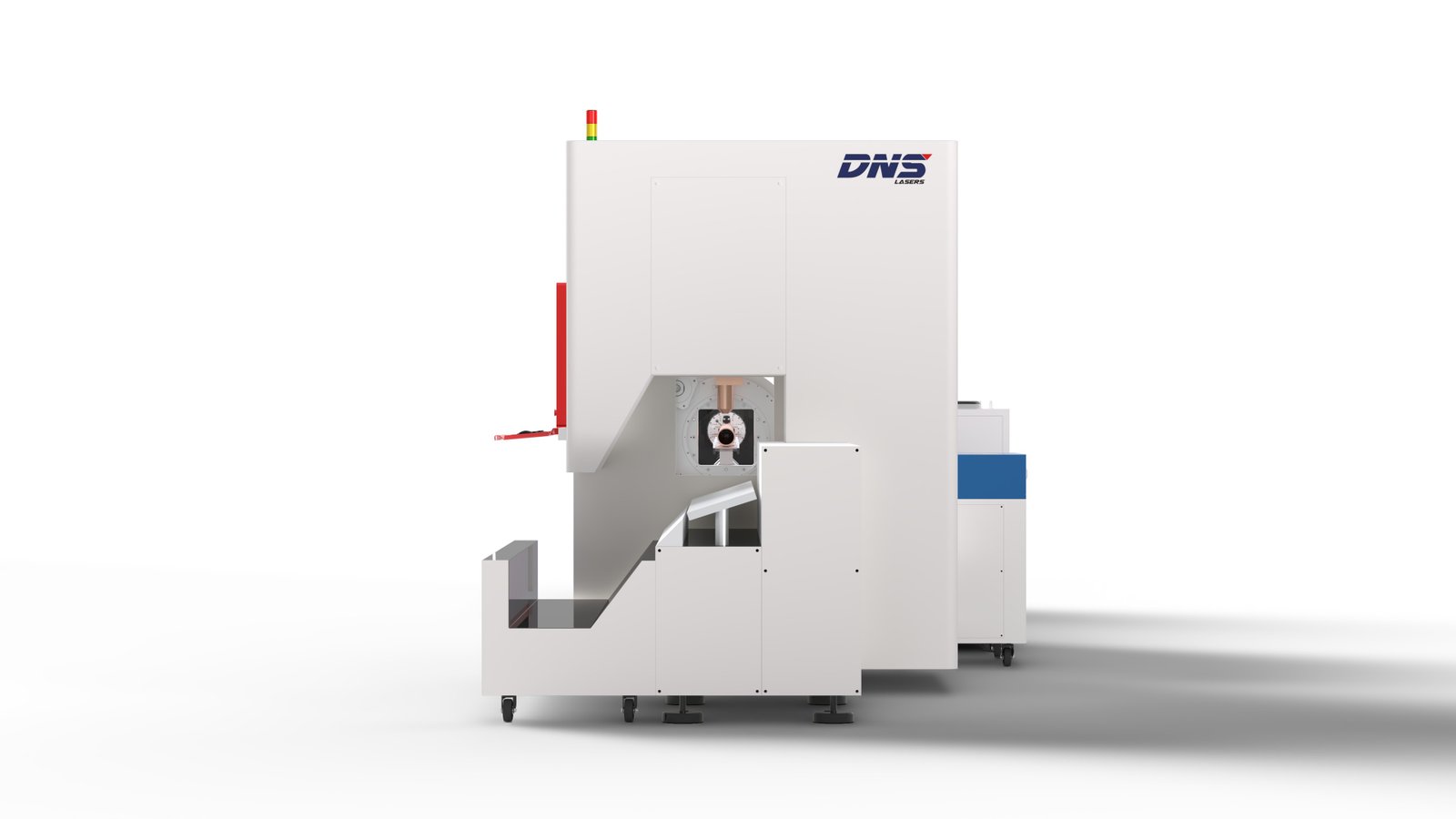

The High Speed Tube Laser Cutting Machine is engineered for precision, speed, and productivity in modern metal fabrication industries.
The High Speed Tube Laser Cutting Machine is engineered for precision, speed, and productivity in modern metal fabrication industries. Available in laser power options ranging from 3kW to 12kW, this advanced system is designed to handle a wide variety of tube profiles with exceptional accuracy. It supports pipe lengths from 3m to 9.5m and efficiently processes round tubes from Ø20 to Ø220/340 mm and square tubes from 20×20 mm to 160×160 / 240×240 mm, making it highly versatile for multiple industrial applications.
With a maximum movement speed of up to 120 m/min and repeatability and positioning accuracy of ±0.05 mm, the machine ensures consistent, high-quality cutting even at high production volumes. The EtherCAT-based CNC control system delivers precise motion control, smooth operation, and enhanced automation capabilities.
Its water-cooled system maintains stable laser performance for continuous, heavy-duty operations, while the dust-proof industrial control panel with built-in AC ensures reliability in harsh shop-floor environments. Built with energy-efficient fiber laser technology, it is ideally suited for automotive, furniture, construction, fitness equipment, heavy engineering, metal fabrication, and structural steel processing.
High speed rotary cutting with active tube centering and zero raw material tailings.
High clamping force and auto-centering prevents thin-walled tube deformation at 120 RPM.
Multi-chuck pass-through design cuts down to zero scrap remnant, saving thousands in pipe costs.
Cuts round pipes (up to Ø340mm), square tubes, rectangular profiles, oval, channel and angle iron.
High rotation speeds with fast dynamics ensure quick cycle times for high batch runs.
Integrated with 3D nesting software for bevel cuts, intersecting holes, and slots with zero programming lag.
Sealed control cabinet with active air conditioning guarantees reliable electronics in high-heat workshops.
Compare specifications across Compact Series machine configurations.
| Specification | LC-230T | LC-350T |
|---|---|---|
| Laser Capacity | 3kW - 12kW | 3kW - 12kW |
| Pipe Length | 3m - 9.5m | 3m - 9.5m |
| Working Size Round Tube | Φ20 - Φ220 (mm) | Φ20 - Φ340 (mm) |
| Working Size Square Tube | 20 - 160 (mm) | 20 - 240 (mm) |
| Max Movement Speed | Up to 120 (r/min) | Up to 120 (r/min) |
| Repeatability | ±0.05 mm | ±0.05 mm |
| Position Accuracy | ±0.05 mm | ±0.05 mm |
| Control System | EtherCAT-based CNC | EtherCAT-based CNC |
| Cooling System | Water Cooling | Water Cooling |
| Machine Control Panel | Dust proof industrial with Panel AC | Dust proof industrial with Panel AC |
Clean cut metal thickness capability (in mm) calculated across various fiber laser power configurations.
| Laser Power | MS — Mild Steel (mm) | SS — Stainless Steel (mm) | Aluminium (mm) | Brass (mm) |
|---|---|---|---|---|
| 1.5 kW | 12 mm | 5 mm | 3 mm | 1 mm |
| 3 kW | 16 mm | 8 mm | 6 mm | 4 mm |
| 6 kW | 25 mm | 15 mm | 12 mm | 8 mm |
| 12 kW | 35 mm | 25 mm | 25 mm | 12 mm |
