1 kW – 20 kW
Engineered Power: 1 kW – 20 kW Fiber Laser Source

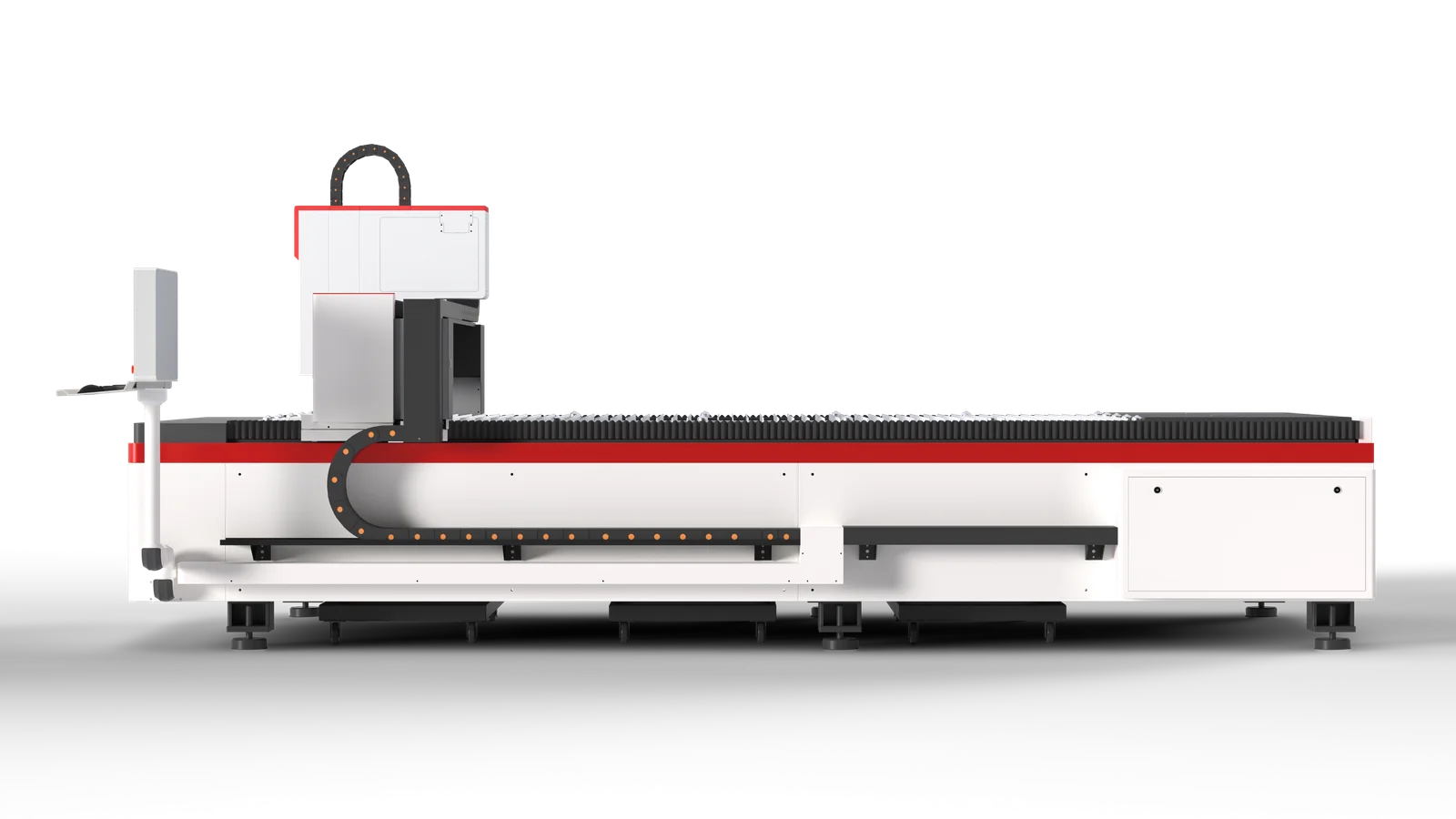

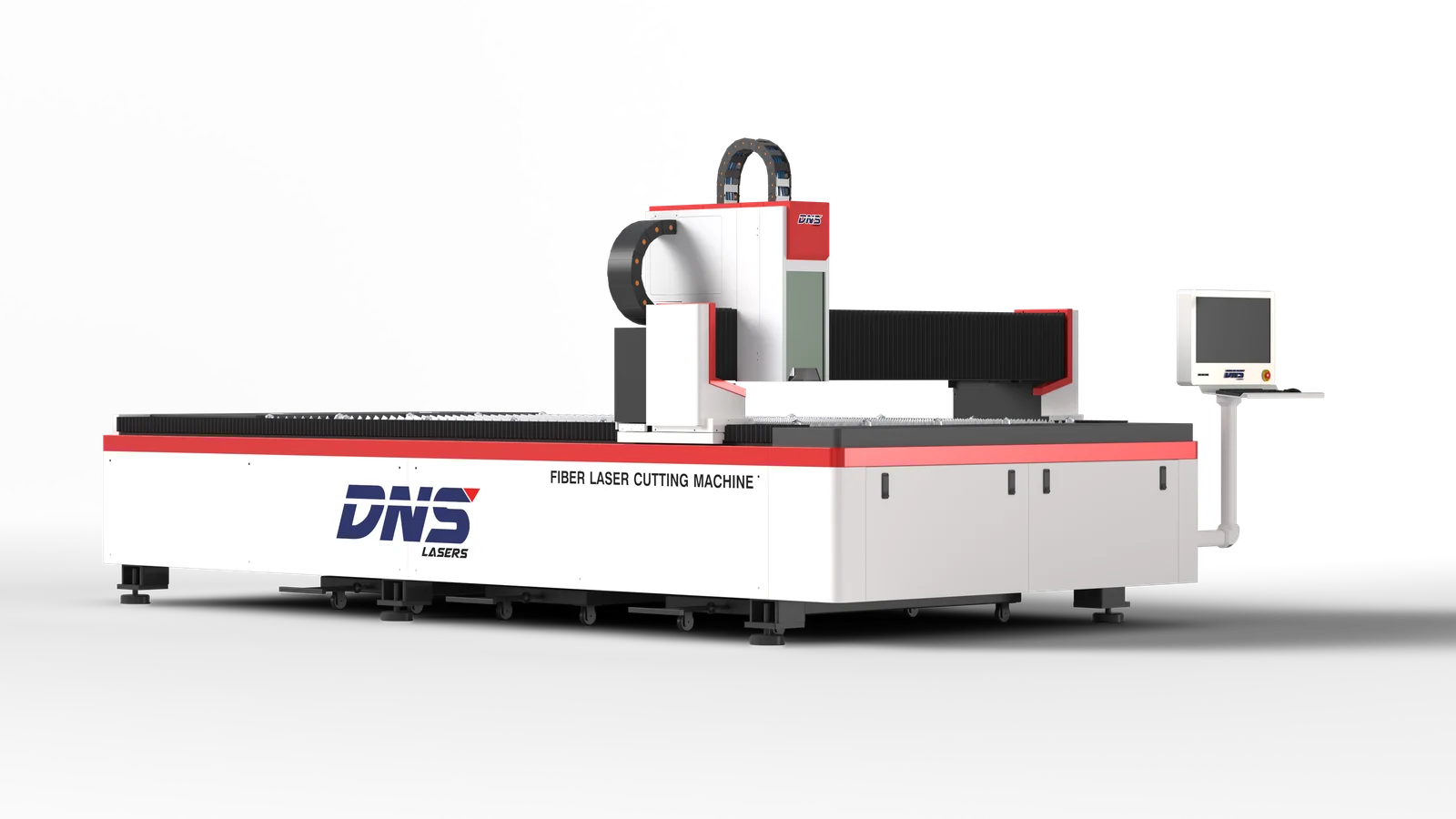

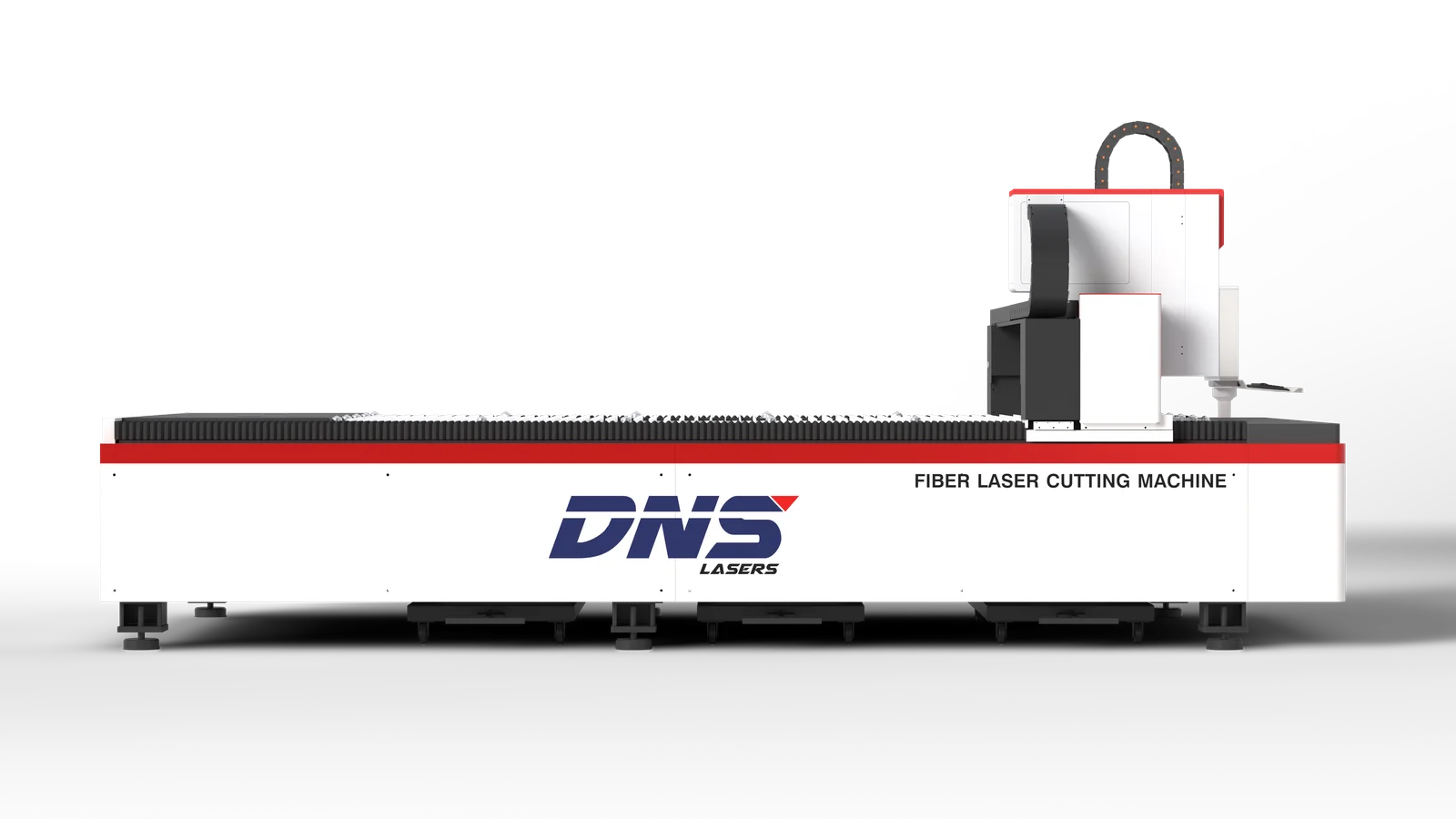

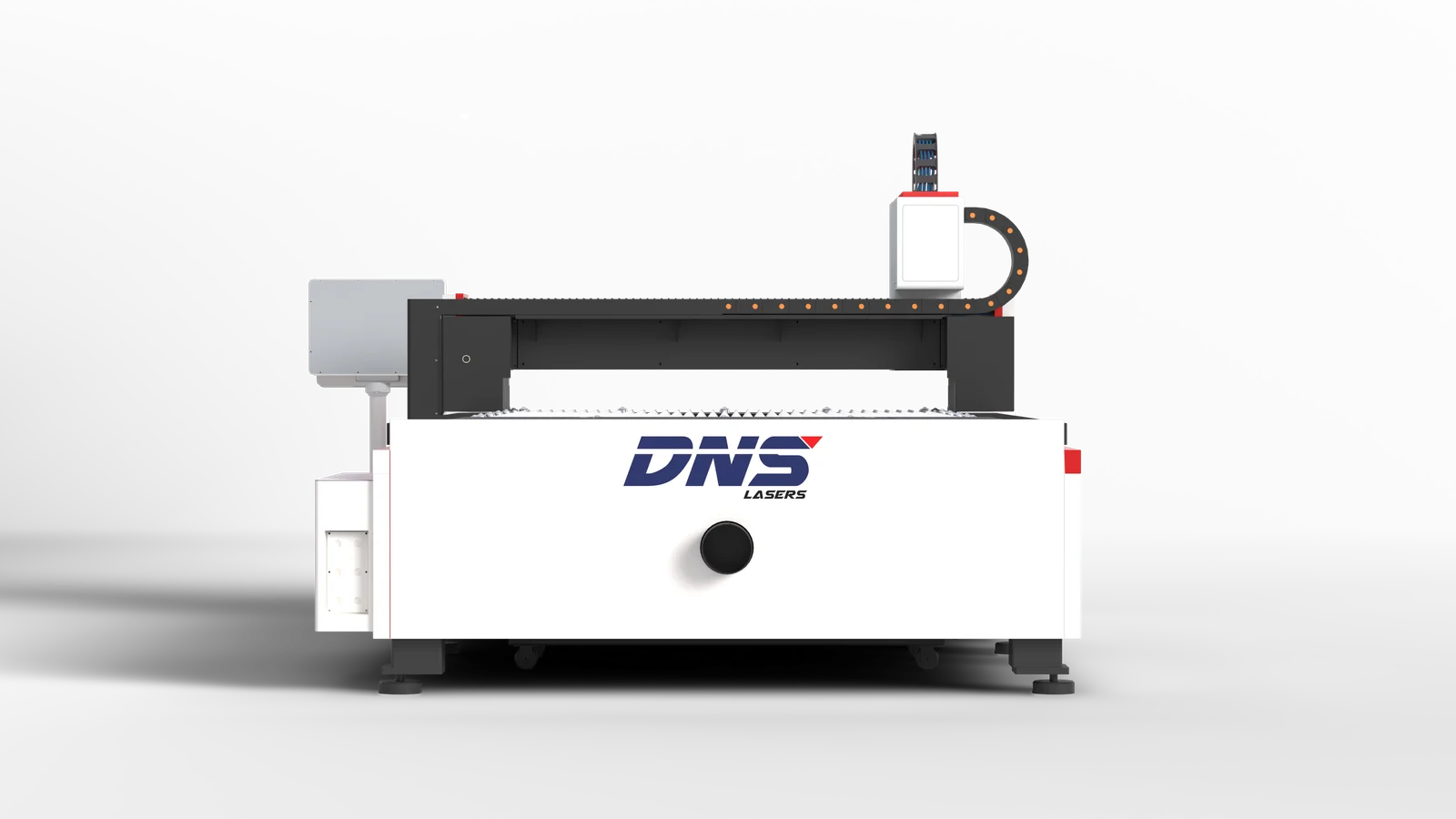

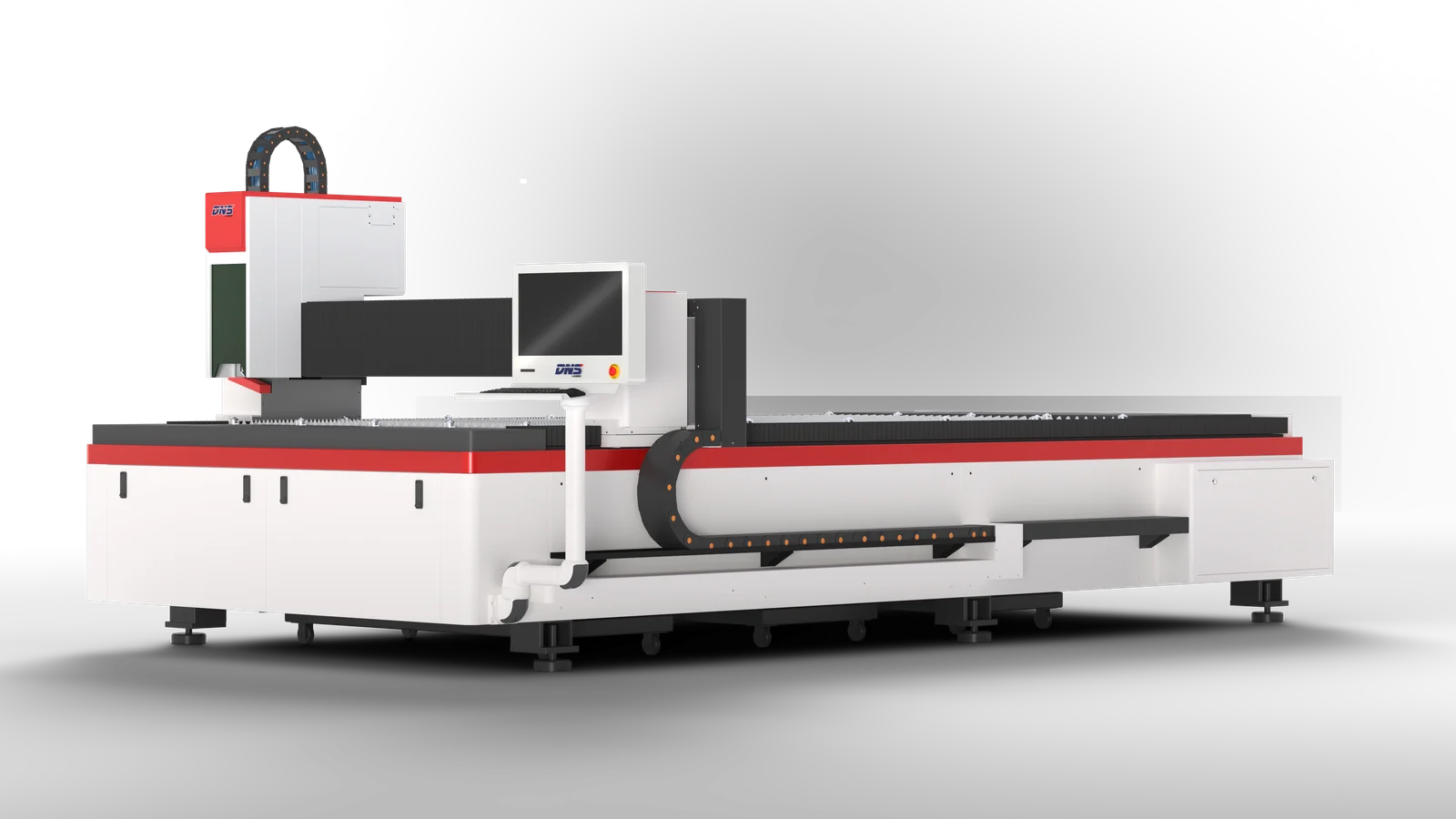

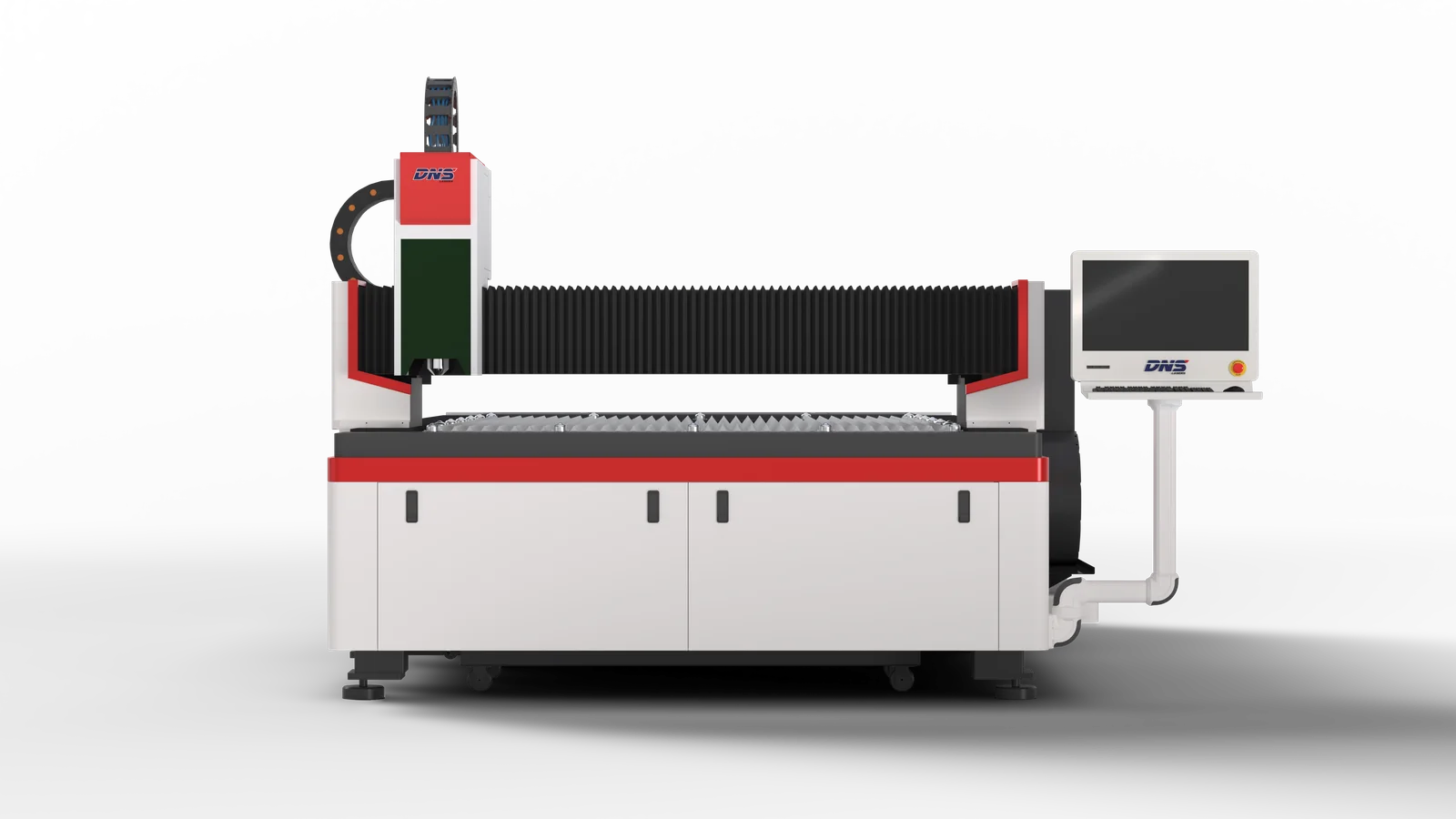

The Compact CNC Fiber Laser Machine, available from 1kW to 20kW, is designed to deliver high precision, fast cutting speeds, and outstanding performance in a space-saving structure.
The Compact CNC Fiber Laser Machine, available from 1kW to 20kW, is designed to deliver high precision, fast cutting speeds, and outstanding performance in a space-saving structure. With rapid movement speeds of up to 100m/min, 1.2G acceleration, and cutting speeds of up to 30 meters per minute depending on material, this machine ensures efficient and reliable production for both small-scale workshops and large industrial units. Its compact industrial design makes it ideal for facilities with limited floor space without compromising on power or accuracy.
Powered by energy-efficient fiber laser technology, the machine significantly reduces operating costs while maintaining excellent cutting accuracy of up to ±0.05mm. The advanced EtherCAT-based CNC control system guarantees smooth, stable, and precise motion control for consistent results. Built with a robust structure, user-friendly CNC interface, and low-maintenance components, the Compact CNC Fiber Laser Machine is perfectly suited for industries such as automotive, metal fabrication, electrical panels, HVAC, signage, and general engineering, ensuring high-quality cutting across a wide range of metal thicknesses.
Built for continuous operation, high precision, and minimum footprint.
High-speed EtherCAT industrial bus control for ultra-precise motion synchronization and real-time laser power control.
High-speed rapid traverse rates up to 100 m/min with 1.2G gantry acceleration for maximum daily sheet yield.
Precision optical linear scales and high-rigidity annealed gantry bed ensure repeatable ±0.05 mm tolerances.
Dual-circuit intelligent industrial chiller system maintains stable temperatures for optical laser head and optics.
Optimized footprint design fits easily into small to medium workshops while offering full 3m x 1.5m to 6.5m x 2.5m cutting areas.
Heavy-duty machine bed stress-relieved via high-temperature annealing furnace for distortion-free 24/7 industrial production.
Compare specifications across Compact Series machine configurations.
| Specification | LC-3015S | LC-4020S | LC-6520S | LC-6525S |
|---|---|---|---|---|
| Laser Capacity | 1 kW – 3 kW | 1 kW – 6 kW | 1 kW – 12 kW | 1 kW – 12 kW |
| Outer Size (L × W × H) | 4500 × 2500 × 1900 mm | 5500 × 3000 × 1900 mm | 8100 × 3000 × 2200 mm | 8100 × 3500 × 2200 mm |
| Working Size (L × W) | 3000 × 1500 mm | 4000 × 2000 mm | 6500 × 2000 mm | 6500 × 2500 mm |
| Max Speed | 100 m/min | 100 m/min | 100 m/min | 100 m/min |
| Max Acceleration | 1.2G | 1.2G | 1.2G | 1.2G |
| Cutting Accuracy | ±0.05 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Control System | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC | EtherCAT-based CNC |
| Cooling System | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Machine Control Panel | Built-in for compact size | Built-in for compact size | External for industrial purpose | External for industrial purpose |
Clean cut metal thickness capability (in mm) calculated across various fiber laser power configurations.
| Laser Power | MS — Mild Steel (mm) | SS — Stainless Steel (mm) | Aluminium (mm) | Brass (mm) |
|---|---|---|---|---|
| 1.5 kW | 12 mm | 5 mm | 3 mm | 1 mm |
| 3 kW | 16 mm | 8 mm | 6 mm | 4 mm |
| 6 kW | 25 mm | 15 mm | 12 mm | 8 mm |
| 12 kW | 35 mm | 25 mm | 25 mm | 12 mm |
Engineered for diverse sheet metal manufacturing industries across India and global markets.
