3 kW – 30 kW
Engineered Power: 3 kW – 30 kW Fiber Laser Source

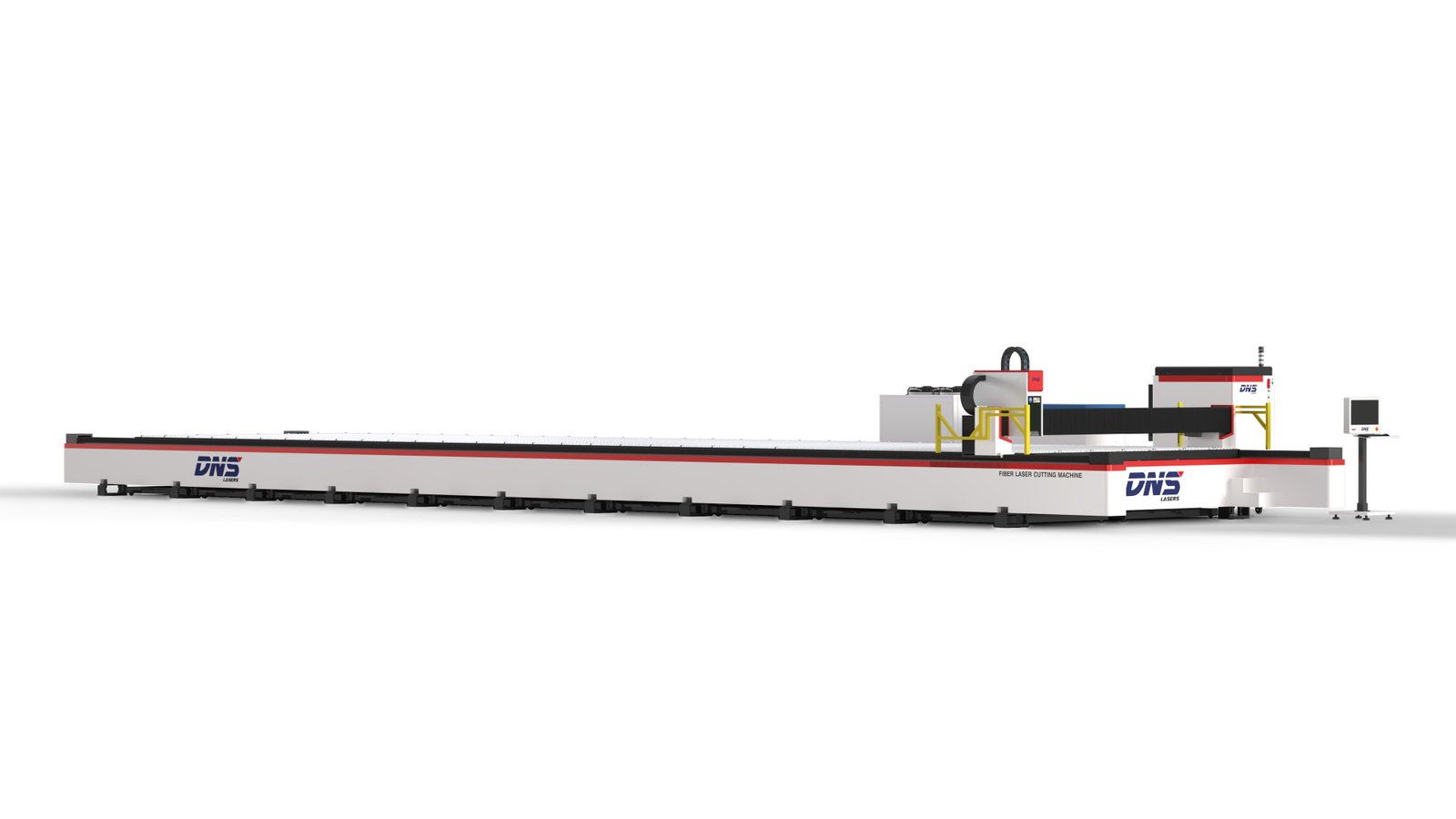

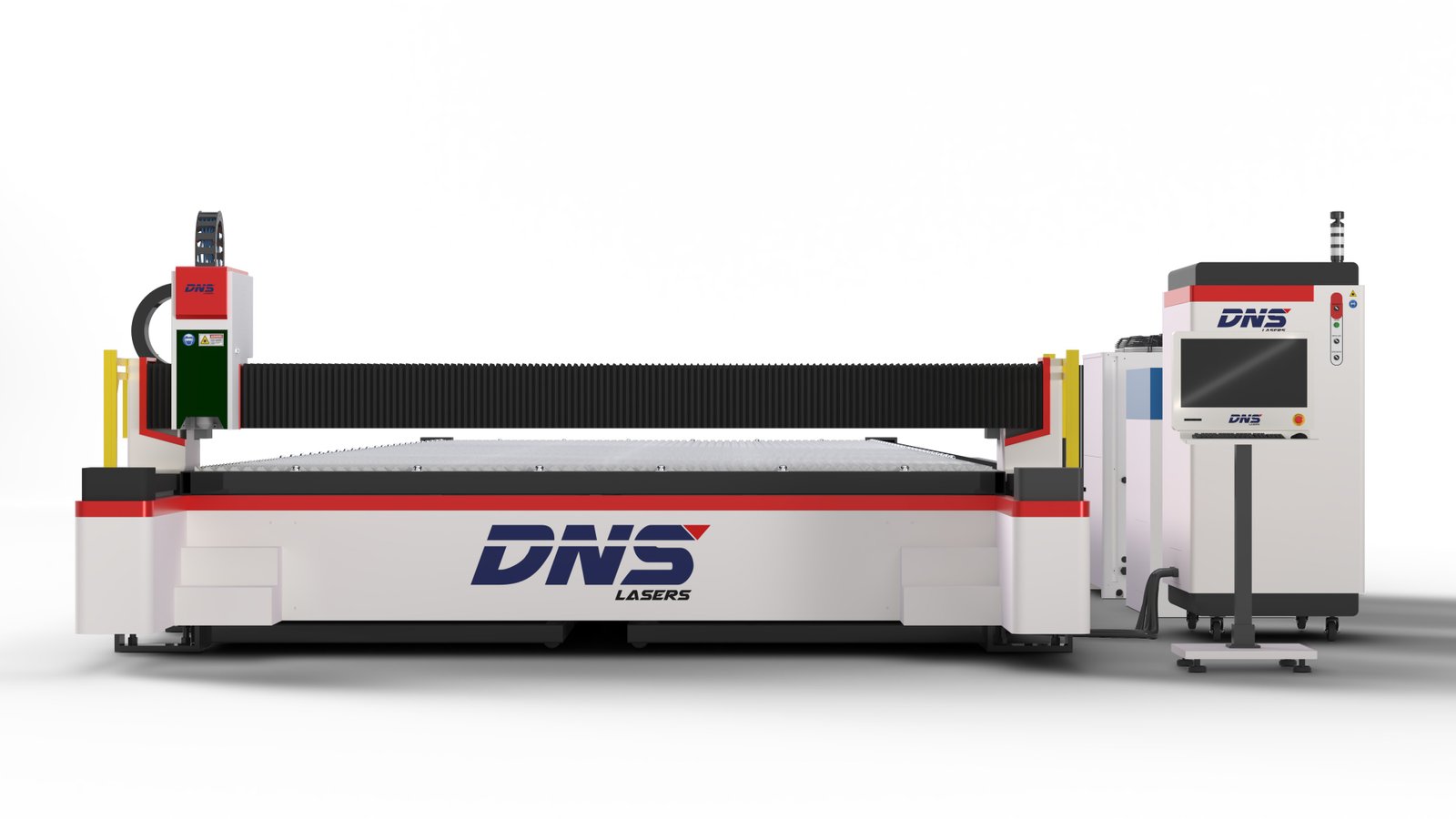

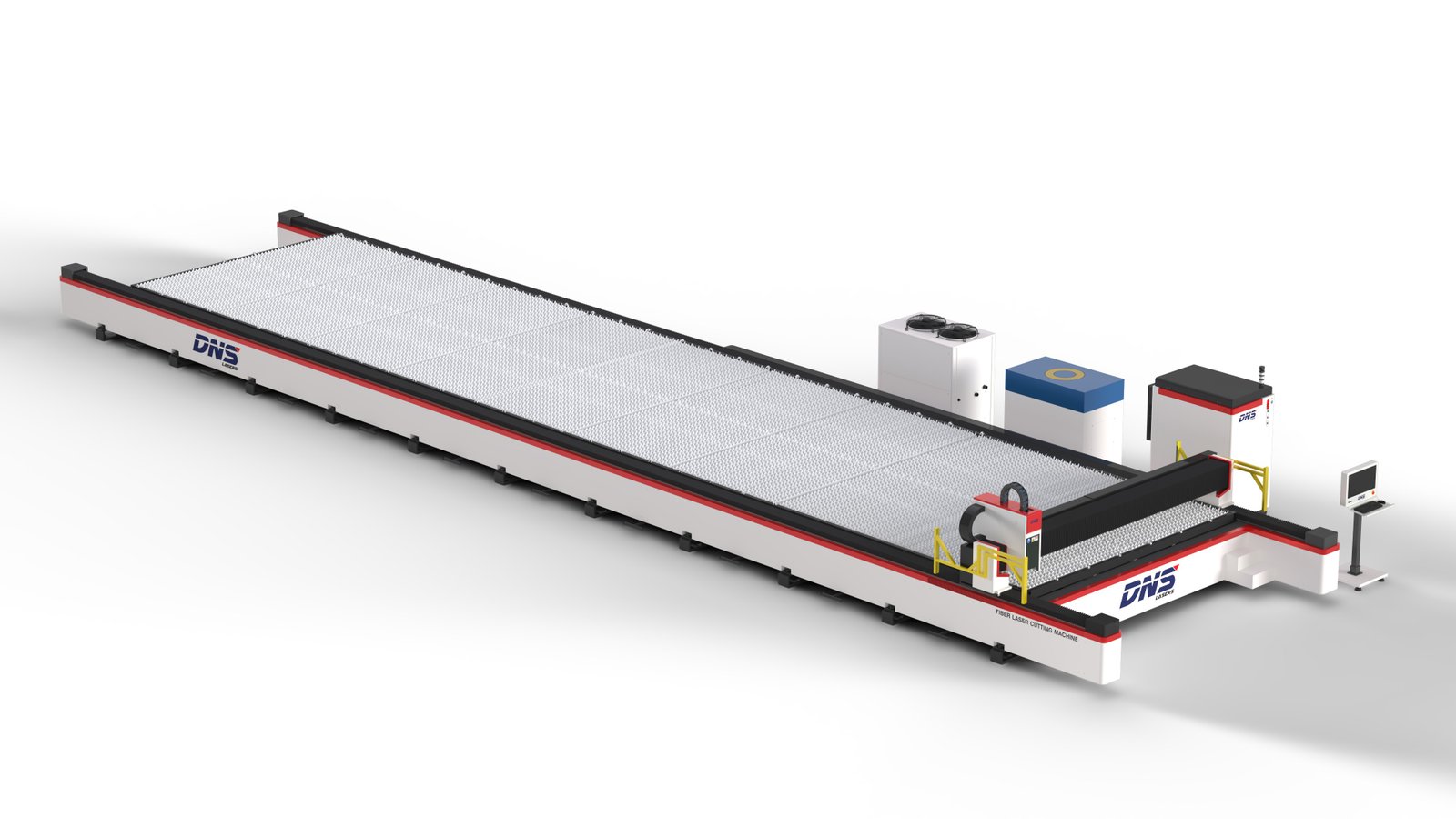

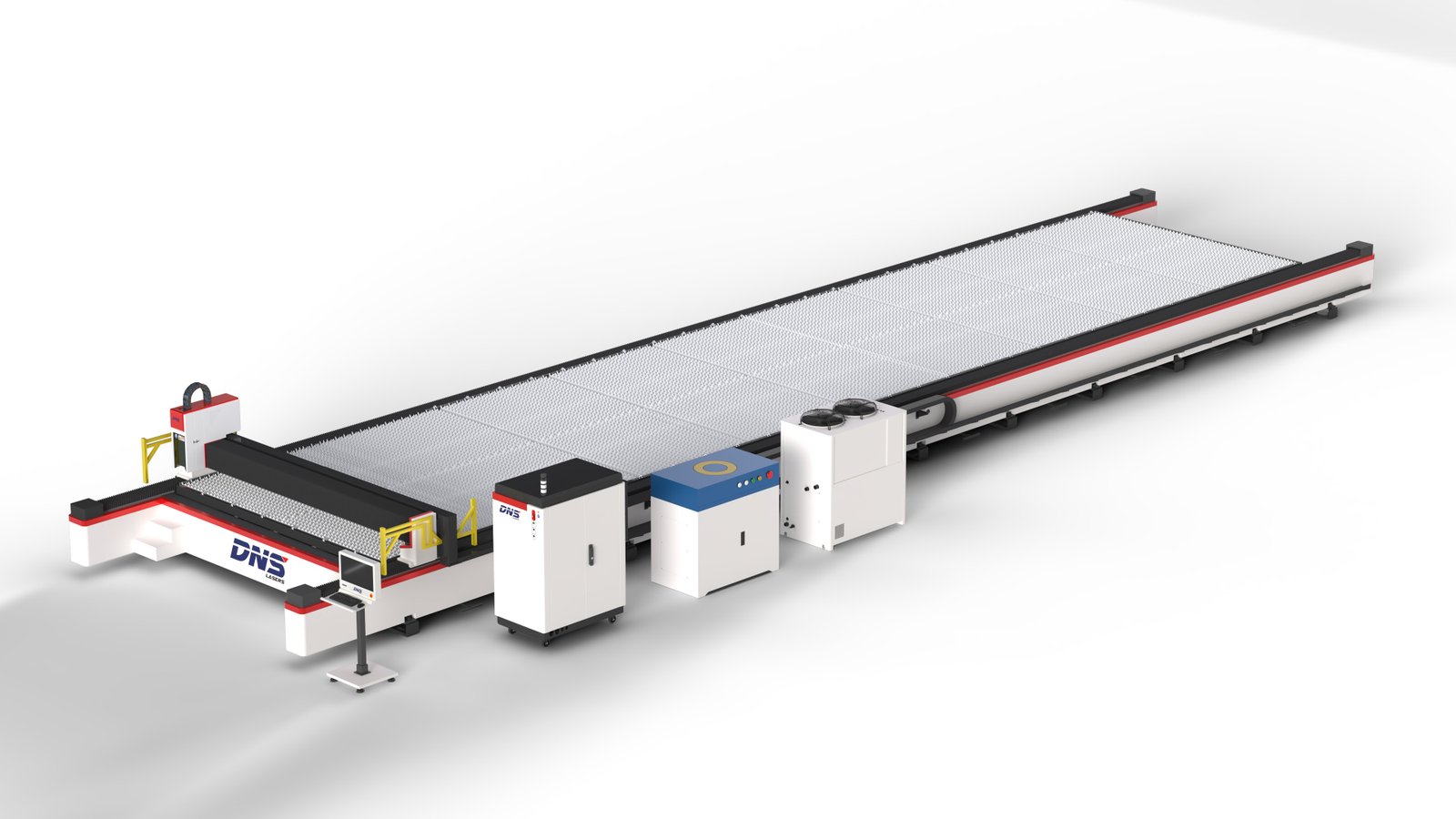

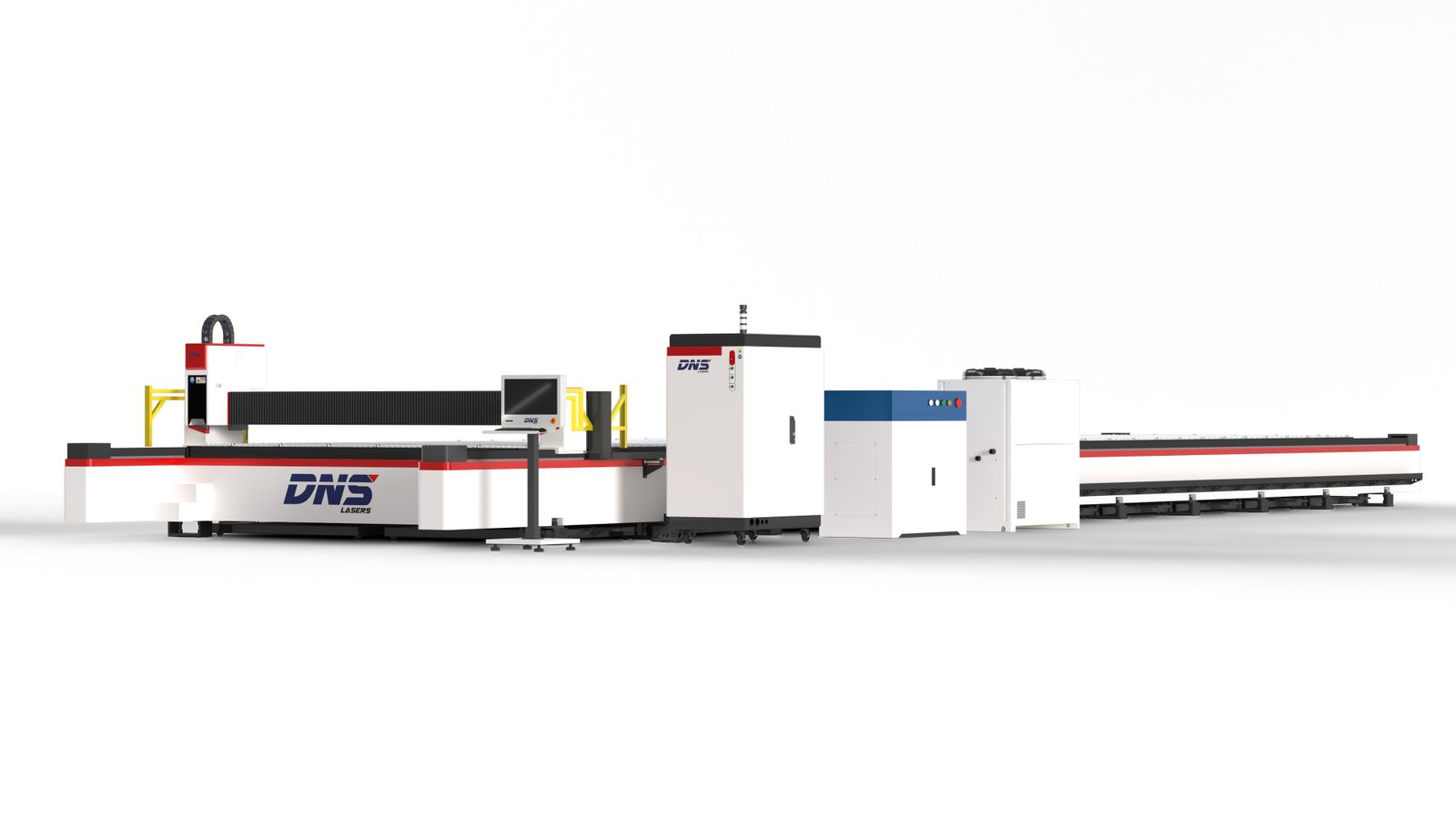

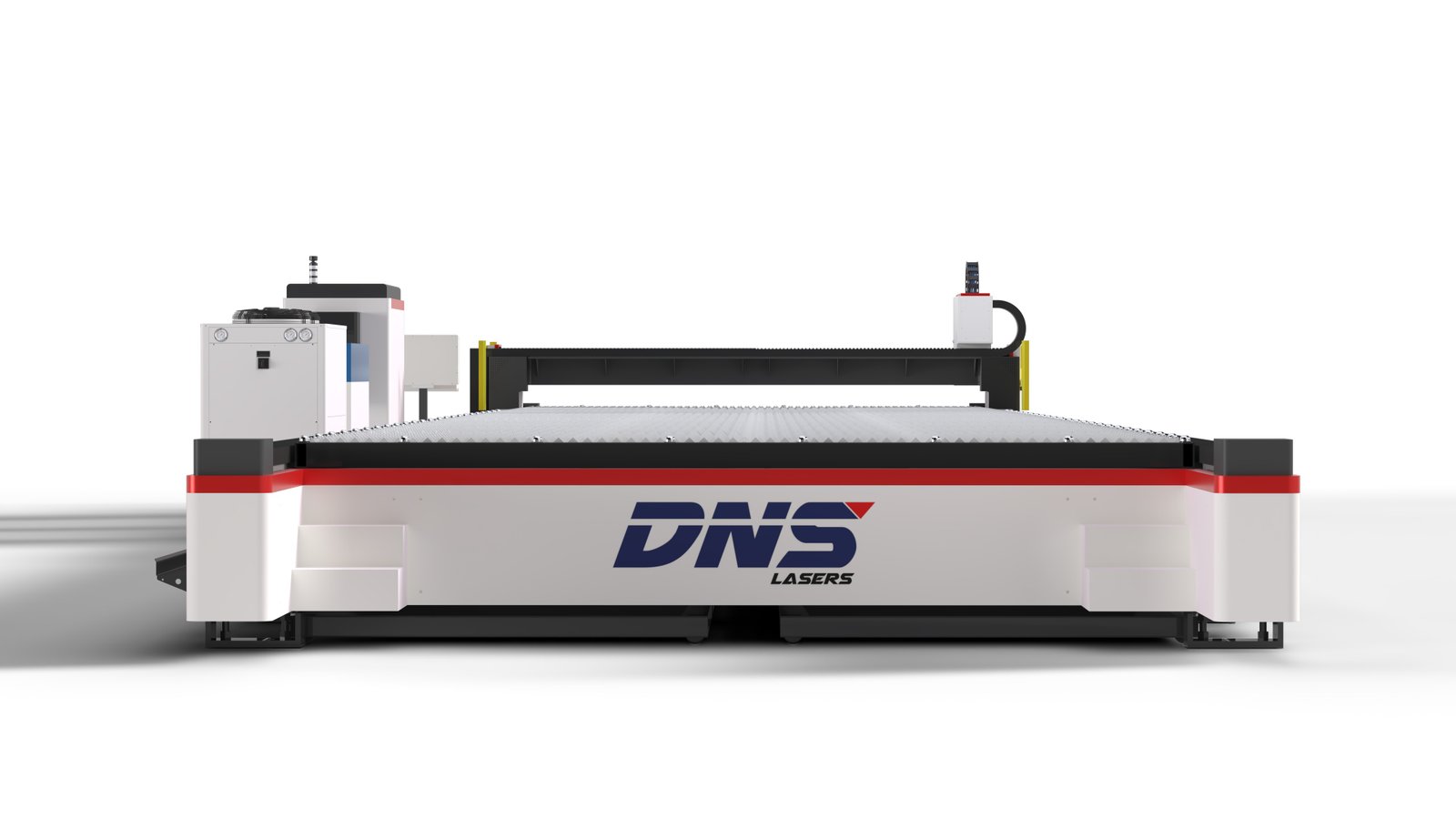

The Large Format CNC Fiber Laser Machine from DNS Lasers is engineered to handle ultra-large sheet sizes with unmatched power, precision, and stability.
The Large Format CNC Fiber Laser Machine from DNS Lasers is engineered to handle ultra-large sheet sizes with unmatched power, precision, and stability. Designed specifically for heavy-duty industrial applications, this machine delivers exceptional performance over long working lengths, making it ideal for large-scale fabrication, infrastructure projects, and high-volume manufacturing.
With laser power options ranging from 3 kW to 30 kW, and working areas extending up to 26000 × 3200 mm, this machine ensures superior cutting capability for thick and thin metal sheets alike. Its high-speed operation—reaching up to 120 m/min with 1.2G acceleration—significantly reduces production time while maintaining cutting accuracy up to ±0.05 mm, even across extremely long sheet materials.
Equipped with an advanced EtherCAT CNC control system, efficient water cooling, and a robust industrial-grade control panel, the Large Format Series ensures reliable, stable, and continuous operation. Whether used in structural steel fabrication, railway components, renewable energy infrastructure, or heavy machinery manufacturing, this machine provides the performance and capacity necessary for demanding industrial environments.
Massive 13m to 26m cutting lengths built for shipbuilding and oversized industrial plates.
Unrestricted oversized plate handling accommodates massive single pieces or multiple batch plates.
Massive power capability enables effortless high-speed cutting of extreme metal thickness.
Advanced ground-rail drive keeps travel speeds lightning fast across long bed lengths.
Multi-section rack calibration ensures consistent ±0.05 mm accuracy across the entire table length.
Seamless coordination of gantry synchronization and real-time beam focus.
Intelligent zone switching exhausts smoke only from the active cutting area, minimizing air loss.
Compare specifications across Compact Series machine configurations.
| Specification | LC-13025S | LC-26032S |
|---|---|---|
| Laser Capacity | 3kW - 30kW | 3kW - 30kW |
| Outer Size (L × W × H) | 15900 × 5000 × 1900 mm | 30500 × 6600 × 1900 mm |
| Working Size (L × W) | 13000 × 2500 mm | 26000 × 3200 mm |
| Max Speed | 120 m/min | 120 m/min |
| Max Acceleration | 1.2G | 1.2G |
| Cutting Accuracy | ±0.05 mm | ±0.05 mm |
| Control System | EtherCAT-based CNC | EtherCAT-based CNC |
| Cooling System | Water Cooling | Water Cooling |
| Machine Control Panel | External for industrial purpose | External for industrial purpose |
Clean cut metal thickness capability (in mm) calculated across various fiber laser power configurations.
| Laser Power | MS — Mild Steel (mm) | SS — Stainless Steel (mm) | Aluminium (mm) | Brass (mm) |
|---|---|---|---|---|
| 1.5 kW | 12 mm | 5 mm | 3 mm | 1 mm |
| 3 kW | 16 mm | 8 mm | 6 mm | 4 mm |
| 6 kW | 25 mm | 15 mm | 12 mm | 8 mm |
| 12 kW | 35 mm | 25 mm | 25 mm | 12 mm |
Engineered for diverse sheet metal manufacturing industries across India and global markets.
